Wii/Wii-U/SW/PS4 to SW/PS4 Super Converter

AMAZING CONVERTER!

Use your Wii/Wii-U Controller, Wiimote, Taiko Drum, NS Pro Controller, Joy-Con and PS4 Wireless Controller on NS/PS4 consoles!

日本の方は Columbus Circle社までお問い合わせください。

For Japan, please contact at Columbus Circle.

Overview

This amazing product is compatible with your Wii/Wii-U Controller, Wiimote, Taiko Drum, NS Pro Controller, Joy-Con, and PS4 Wireless Controller. It also allows you to customize button layout and add a turbo button to original and 3rd party controllers.

Within the Brook TM Super Converter, you can use existing as mentioned above controllers to play on your NS/PS4 console and on PC!

Video

Features

  • USB interface which permits hot swapping
  • Firmware Updatable
  • Vibration support
  • Full button compatibility

Instructions

Wireless Controller:

How to Connect NS wireless Controllers

Register your controller for first time use

Step 1

Make sure that the Game Controller Super Converter is not connected to any wired controller.

Step 2

Press and hold the BROOK-Key on the Game Controller Super Converter until it flashes quickly and then release it, then press the SYNC button on the controller until NS controller enters the wireless registration mode (LED loop) to register your NS Controller.

Wake up your controllers

Press any button on controllers to make the LED appear looping.



Note: This product supports Joy-Con L and Joy-Con R to use at the same time. By registering the two controllers in sequence, you can use both controllers to play the game at the same time.



How to Connect Wii/Wii U Wireless Controller

Register your controller

Step 1

Make sure that the Game Controller Super Converter is not connected with any wired controller.

Step 2

Press and hold the BROOK-Key on the Game Controller Super Converter until it flashes quickly and then release it, then press the SYNC button on the controller until it flashes to register your controller.

Wake up your controller

Press any button on controller to wake up the connection. When the LED of the Game Controller Super Converter is steady on, it indicates that the connection is complete.



How to Connect PS4 Wireless Controller

Register your controller

Step 1

Make sure that the Game Controller Super Converter is not connected with any wired controller.

Step 2

Press and hold the BROOK-Key on the Game Controller Super Converter until it flashes quickly and then release it, then press the SHARE + PS button on the controller until it flashes to register your controller.

Wake up your controller

Press the PS button on controller to wake up the connection. When the LED of the Game Controller Super Converter is steady on, it indicates that the connection is complete.



Notes for using a wireless controller

What is the wireless registration mode?

When the Game Controller Super Converter is in wireless wake-up mode, press BROOK-Key to switch to wireless registration mode, and the LED on the Game Controller Super Converter will flash rapidly at three times per second.



What is the wireless wake-up mode?

When you connect the Game Controller Super Converter to a SW/PS4/PC, the LED on the Game Controller Super Converter will flash slowly at once per second. The registered controller can be wake up.

Wired Controller:

How to Connect Wired Controller

Just connect the controller to the Game Controller Super Converter to use.



How to Connect Wired Controller via Wii Remote

Step 1

Wake up Wii Remote Controller.

Step 2

Connect the wired controller to Wii Remote for use.

Step 3

Press the Home button on Wii Remote to wake up the connection. When the LED of the Game Controller Super Converter is steady on, it indicates that the connection is complete.







Functions

Turbo Setting

The following description uses the Wii U Pro controller as an example. For other controllers, please refer to the button configuration table.

How to set Turbo

Turbo function available buttons: ABXYLRZLZRL3R3(or ○、╳、△、□、L1R1L2R2L3R3 on PS4 Controller) In total 10 buttons (refereed to as FB). This function is not available on the Wii Remote wireless controller. However, wired controllers connected via Wii Remote still support this function.



Step 1. Enter the setting mode:

Press (-) & Home, the converter’s LED will change Green to Red.

Step 2. Choice FB button:(Ex: A to set turbo function)

Hold on (-), then press A

Step 3. Complete the setting mode:

Release all buttons then press (+)

Step 4. Exit the setting mode:

Press Home , the converter’s LED will change Red to Green



How to clear Turbo

Step 1. Enter the setting mode:

Press (-) & Home, the converter’s LED will change Green to Red.

Step 2. If wanted to clear all turbo function buttons,

press on (+) & (-) then Go to Step 5.

Step 3. Choice FB button:(Ex: A to clear turbo function)

Press A

Step 4. Complete  the setting mode:

Press (+)

Step 5. Exit the setting mode:

Press Home , the converter’s LED will change Red to Green



Note : If you want to continue with more settings after completing Step4, you can do it again from Step2. After completing all settings, go to Step 5 to exit setup mode.

Remap Setting

The following description uses the Wii U Pro controller as an example. For other controllers, please refer to the button configuration table.

How to set remap

Remap function available buttons: ABXYLRZLZRL3R3(or ○、╳、△、□、L1R1L2R2L3R3 on PS4 Controller) In total 10 buttons (refereed to as FB). This function is not available on the Wii Remote wireless controller. However, wired controllers connected via Wii Remote still support this function.



Step 1. Enter the setting mode:

Press (+) & Home, the converter’s LED will change Green to Red.

Step 2. Choice FB button:(Ex: X to do A+B function)

Press X

Step 3. Choice Remap button:

Hold on (-) , then press A+B

Step 4. Complete  the setting mode:

Release all buttons then press (+)

Step 5. Exit the setting mode:

Press Home , the converter’s LED will change Red to Green.

Note

Cancel All Remap Setting: Enter mode and press (-)&(+)



How to Clear remap

Step 1. Enter the setting mode:

Press (+) & Home, the converter’s LED will change Green to Red.

Step 2. If wanted to clear all remap function buttons,

Press on (+) & (-) Go to Step 5

Step 3. Choice to clear FB button:(Ex: A to clear remap function)

Press A

Step 4. Enter to the clear function:

Press (+)

Step 5. Exit the setting mode:

Press Home , the converter’s LED will change Red to Green.



Note: If you want to continue with more settings after completing Step4, you can do it again from Step2. After completing all settings, go to Step 5 to exit setup mode.

Button Configuration

Button Configuration for PS4

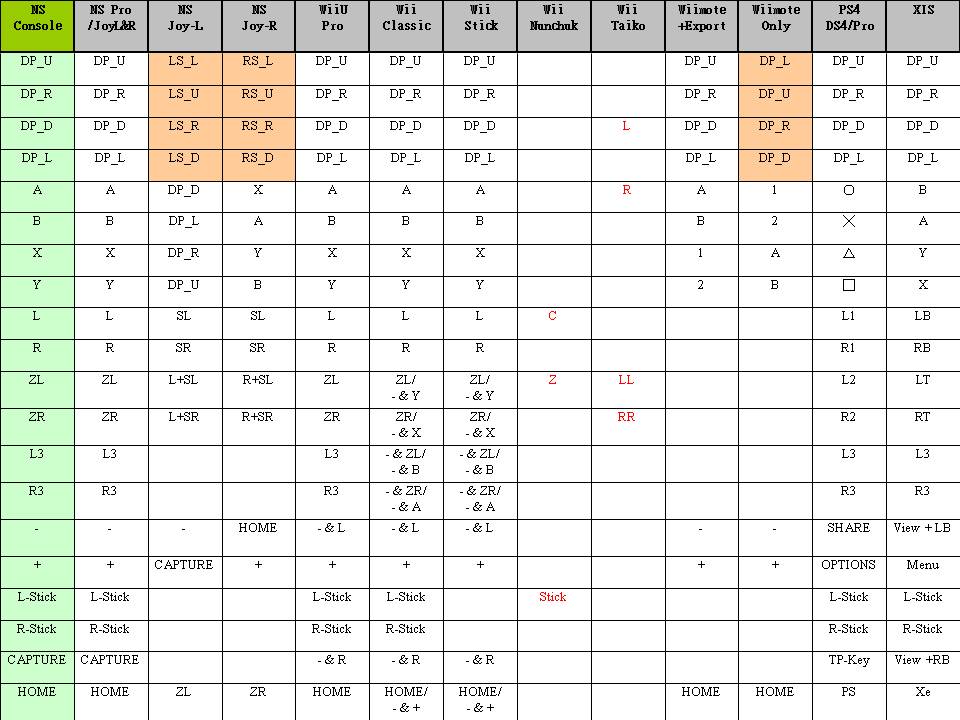

Button Configuration for   Nntendo Switch

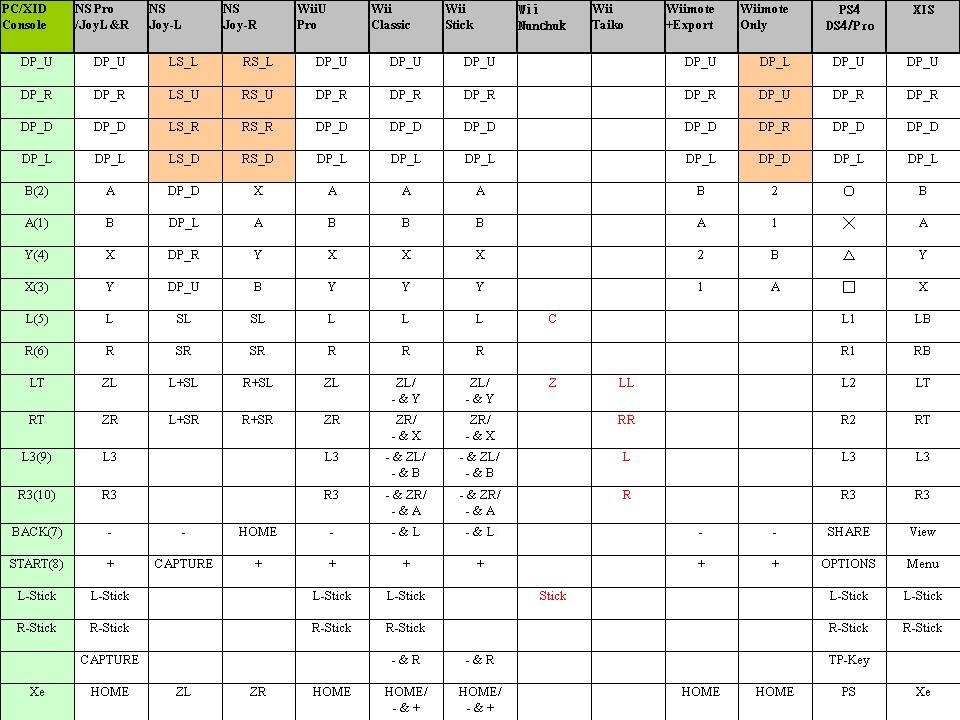

Button Configuration for   PC(XID)

Disclaimer

Each Brook Controller Adapter can only handle one controller at a time.
