PS3/PS4 to NEOGEO mini Super Converter

PS3/PS4 to NEOGEO mini Super Converter
Use your wireless PS3/PS4 controller with your NEOGEO mini

日本の方はここでご購入
いただけます。



Overview



Brook Super Converter series make new controllers compatible with retro consoles.

This not only saves your money but also means that you can use the controllers you have grown accustomed to. Installation and use of the PS3/PS4 to NEOGEO mini controller Adapter is effortless.

Features







Firmware Updatable



X-input support



Vibartion Support (X-input mode only)



Auto-register controllers



Full compliance with environmental standards.

Button Configuration

NeoGeoMini B

NeoGeoMini C

X-input B

X-input C

NEOGEO Stick 2

PS4 Game Pad

PS3 Game Pad

D-pad-UP

D-pad-Down

D-Pad-Left

D-pad-Right

B

D

B1(A)

Z Axis/UP(LT)

D



B2(B)

B1(A)

A

A

B3(X)

B5(LB)

C

B

B4(Y)

B3(X)

Start

Start

B8(Start)

B8(Start)

Start

OPTIONS

Start

Select

Select

B7(Back)

B7(Back)

Select

SHARE

Select

D-pad
(Up/Down/Left/Right)

D-pad
(Up/Down/Left/Right)

Lx

Lx



Lx

Lx

Ly

Ly



Ly

Ly





Ry

Ry



Ry

Ry





Rx

Rx



Rx

Rx



D

B5(LB)

B6(RB)

L1

L1

L1



C

B6(RB)

B4(Y)

R1

R1

R1





Z Axis/Up (LT)

Z Axis/Down(RT)

L2

L2

L2





Z Axis/Down (RT)

B2(B)

R2

R2

R2





B9(LSB)

B9(LSB)



L3

L3





B10(RSB)

B10(RSB)



R3

R3

Fn

Fn

Xe

Xe

L2 + R1

PS

PS



Switching device mode

1. NEOGEO mini PC (X-input)

Press the direction key to the DOWN and START (Press the direction key to the down and OPTIONS buttons for PS4 gamepad) buttons at 3 seconds.

You can see the LED will flash once.

2. PC (X-input)  NEOGEO mini

Press the direction key to the UP and START (Press the direction key to the up and OPTIONS buttons for PS4 gamepad) buttons at 3seconds.

You can see the LED will flash once.

Configuring a specific key shortcut switching function

By pressing combo keys to switch between Type A, Type B and Type C.


Type-A : Hold on Fn(PS) + □ & pro vides the Turbo & Remap button configuration function, the default is in this Type as Mini Pad mode when mini converter is power on.



Type-B : Hold on Fn(PS) + X to set Mini Pad mode.


Type-C : Hold on Fn(PS) + △ to set Arcade Stick mode.

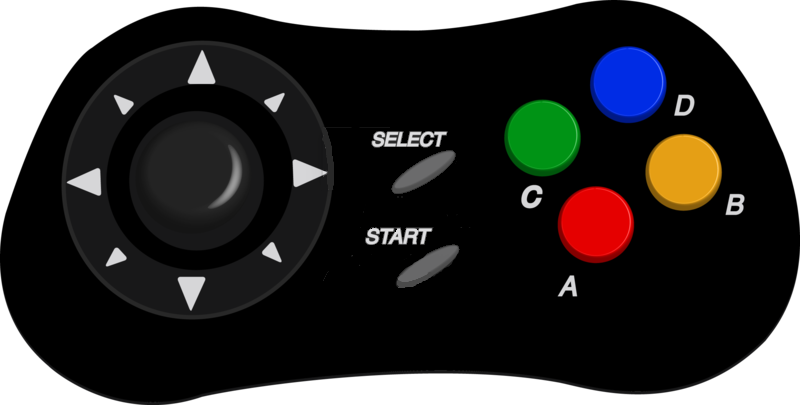

※The following uses NEOGEO mini control code to do function description.





Configuring mode A:

Switch mode Fn+A, which is the Turbo & Remap button configuration mode. After the adapter is powered on, the normal configuration mode is used. This mode first configures the configuration to configuration mode B.

Configuring mode B:

Switch mode Fn+B → Mini Pad mode

  NEOGEO mini-Mode B   X-Input(PC mode)–Mode B

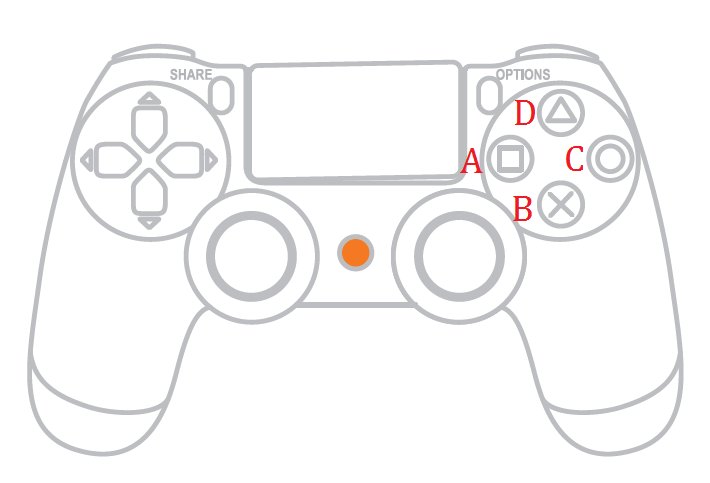

Configuring mode C:

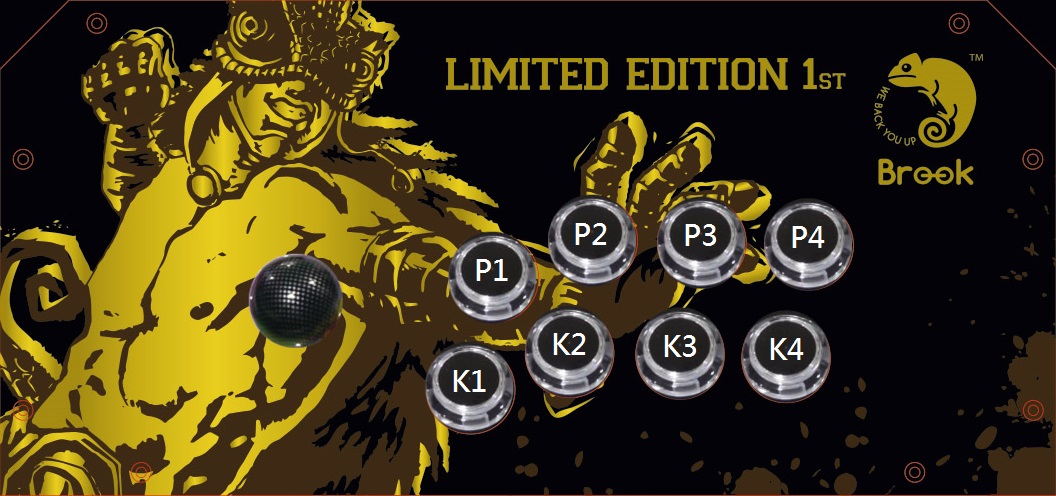

Switch mode Fn+C → Arcade Stick mode

  NEOGEO mini-Mode C   X-Input(PC mode)–Mode C





Procedure for assigning and cleaning Turbo button

Procedure for assigning Turbo button



Step 1.

Press the PS and SELECT buttons (Press the PS and SHARE buttons for PS4 Gamepad) at the same time. The converter’s LED will switch from blue to red to indicate that you enter the settings mode.

Step 2.

Press the SELECT buttons (Press the SHARE and OPTIONS buttons for PS4 Gamepad) at the same time to clear the current setting.

Step 3.

Press the PS button to exit the setting mode. The Converter’s LED will switch from to red to blue to indicate that you exit the settings mode.



Step 4.

This step can be used to check if the button is set to the brust button.

1.     Press the direction key to the right, you can query ○, △, □, X key, in order to display PlayerLED 1~4

2.     Press the direction key to the up, you can query the R2, R1, L1, and L2 keys, and display them in sequence for PlayerLED 1~4.

3.     Press the direction key to the down, you can query the R3 and L3 keys, which are displayed as PlayerLED 1,4.





Step 5.

Press the PS button to exit the setting mode. The Converter’s LED will switch from to red to blue to indicate that you exit the settings mode.



Procedure for cleaning Turbo button



Step 1.

Press the PS and SELECT buttons (Press the PS and SHARE buttons for PS4 Gamepad) at the same time. The converter’s LED will switch from blue to red to indicate that you enter the settings mode.

Step 2.

Press the SELECT buttons (Press the SHARE and OPTIONS buttons for PS4 Gamepad) at the same time to clear the current setting.

Step 3.

Press the PS button to exit the setting mode. The Converter’s LED will switch from to red to blue to indicate that you exit the settings mode.

Procedure and resetting all customized buttons

Procedure for customizing buttons.

Step 1.

Press the PS and START buttons (Press the PS and OPTIONS buttons for PS4 Gamepad) at the same time. The converter’s LED will switch from blue to red to indicate that you enter the settings mode.

Step 2.

Transfer a function form one button to another.

(Example: You want to use □ to do what ○ does now.)

1.Press the ○ button.

2.Press the SELECT button( Press and hold the SHARE button for PS4 Gamepad) then press the □ button.

3.Press the Start Button (Press the OPTIONS button for PS4 Gamepad) to complete the setting



Transfer a function form one button to multiple buttons.

(Example: You want to use X, □ to do what ○ does now.)

1.Press the ○ button.

2.Press the SELECT button (Press and hold the SHARE button for PS4 Gamepad) then press X and □ button in one by one. (any sequence will do)

3.Press the Start Button (Press the OPTIONS button for PS4 Gamepad) to compelte the settion.



Step3.

This step can be used to check if the button is set to the brust button.

1.Press the direction key to the right, you can query ○, △, □, X key, in order to display PlayerLED 1~4

2.Press the direction key to the up, you can query the R2, R1, L1, and L2 keys, and display them in sequence for PlayerLED 1~4.

3.Press the direction key to the down, you can query the R3 and L3 keys, which are displayed as PlayerLED 1,4.



Step4.

Press the PS button to exit the setting mode. The Converter’s LED will switch from to red to blue to indicate that you exit the settings mode.



Procedure for resetting all customized buttons.

Step 1.

Press the PS and START buttons (Press the PS and OPTIONS buttons for PS4 Gamepad) at the same time. The converter’s LED will switch from blue to red to indicate that you enter the settings mode.



Step 2.

Press the SELECT and START buttons (Press the SHARE and OPTIONS buttons for PS4 Gamepad) at the same time to clear the customized setting.

Step 3.

Press the PS button to exit the setting mode. The Converter’s LED will switch from to red to blue to indicate that you exit the settings mode.





Disclaimer and FAQ



Disclaimer

Each Brook Controller Adapter can only handle one PS3/PS4 controller at a time.

PS3/PS4 controllers connect to the Controller Adapter automatically, but must be connected with a USB cable at first time use for the purpose of registering the controller.



FAQ

You can go here to find the FAQ.

Compatibility



The list below indicates the controllers/sticks/wheels that have been tested to be compatible or not compatible with the converter.
For those controllers/sticks/wheels which are not listed indicates that they have not been tested yet.


Compatible:

HORI:PRO.V4
HORI:Pro V Hayabusa
HORI:Pro N Hayabusa
HORI:Real Arcade Pro. 4 Premium VLX
HORI:DEAD OR ALIVE 5 Last Round 対応スティック
HORI:Real Arcade Pro.3
HORI:WIRELESS REAL ARCADE PRO.V3
HORI:RAP V3-SA
HORI:PS3 Wired HORI Fighting Commander 3
HORI:WIRELESS FS-3
HORI:RAP N3-SA
HORI:PS4-043 Mini
HORI:PS4 Wired Controller  [PS4-025]
HORI:PS3 Hori Fighting Min3
HORI:Fighting Edge 刃 for PS3
HORI:HORIPAD3 TURBO
HORI:PS4 -Project DIVA- X HD
HORI:FIGHTING Edge 刃 for PS4
HORI:FIGHTING COMMANDER
HORI:ファイティングコマンダー
HORI:ファイティングコマンダー4
HORI:ファイティングコマンダー3 for PS3
HORI:ホリパッド4 FPS ブルー
HORI:ホリパッド4 FPS ブラック
MadCatz:Street Fighter Tournament Edition S
MadCatz:Street Fighter®V Arcade FightStick™ Tournament Edition 2+ for PS4 & PS3
MadCatz:Street Fighter®V Arcade FightStick™ Alpha for PS4 & PS3
MadCatz:PS3 Street Fighter limited Arcade FightStick
MadCatz:MadCatz Arcade FightStick TE2
MadCatz:Street Fighter®V FightPad PRO™ for PS4 & PS3
MadCatz:STREET FIGHTER IV Arcade FightStick 2013
SEGA:VIRTUA STICK HIGH GRADE PS3
Sony:PS3 Wireless Controller
Sony:PS4 Wireless Controller
Sony:PS4 Slim DS4 Wireless Controller
Sony:PS4 DUALSHOCK 4
QANBA:Q1
QANBA:Drone
QANBA:Q4
Venom:Arcade stick PS4/PS3
KDIT:King Snake 2014
Joytron:REVOLUTION
Etokki:Omni Arcade Stick -Sanwa Edition
BD&A:POWER A FUS1ON Tournament Controller for PS3
BD&A:PS3 Wired Controller Air Flo
SCUF:PROFESSIONAL CONTROLLER FOR PS4
SCUF:PROFESSIONAL CONTROLLER FOR PS3
LEVEL UP:PS2/PS3 Wireless Controller
LEVEL UP:PS2/PS3 Wired Controller
PDP:Mortal Kombat X Fight Pad for PlayStation 4 and PlayStation 3
Saitek:Wired Controller
PS360+:AKISHOP
SRK:Toodles Cthulhu Multi-Console PCB
Game Stop:Wired Controller
NEOGEO Stick 2 for PS3
Brook Mars Wired Controller
Brook PS4+ Audio Fighting Board





動作確認済みジョイスティック、コントローラ:

HORI:PS4/PS3対応 リアルアーケードPro.V4 隼

HORI:PS4/PS3/PC対応 リアルアーケードPro.V HAYABUSA

HORI:PS4/PS3/PC対応 リアルアーケードPro.N HAYABUSA

HORI:PS4/PS3対応 リアルアーケードPro.4 Premium VLX

HORI:PS4/PS3対応 DEAD OR ALIVE 5 LAST ROUND 対応スティック

HORI:PS3用 リアルアーケードPro.3

HORI:PS3用 リアルアーケードPro.V3 SA

HORI:PS3用 ワイヤレス リアルアーケードPro.V3 SA

HORI:PS3用 ワイヤレスファイティングスティック3

HORI:PS3用 ファイティングスティックN3 SA

HORI:PS4/PS3対応 ファイティングスティック mini4

HORI:PS3用 ファイティングスティックmini3

HORI:PS3用 ジョイスティック ファイティングエッジ3 刃

HORI:PS4用 初音ミク -Project DIVA- X HD 専用ミニコントローラー

HORI:PS4用 Fighting Edge 刃

HORI:PS4/PS3/PC対応 ファイティングコマンダー

HORI:PS4/PS3対応 ファイティングコマンダー4

HORI:PS3用 ファイティングコマンダー3

HORI:PS4/PS3対応 ホリパッド4 FPS

HORI:PS4用 ホリパッドFPSプラス for PS4

HORI:PS3用 ホリパッド3ターボ

MadCatz:Street Fighter Tournament Edition S

MadCatz:Street Fighter®V Arcade FightStick™ Tournament Edition 2+ for PS4 & PS3

MadCatz:Street Fighter®V Arcade FightStick™ Alpha for PS4 & PS3

MadCatz:PS3 Street Fighter limited Arcade FightStick

MadCatz:MadCatz Arcade FightStick TE2

MadCatz:Street Fighter®V FightPad PRO™ for PS4 & PS3

MadCatz:STREET FIGHTER IV Arcade FightStick 2013

SEGA:PS3用バーチャスティック ハイグレード

SONY:PS4用 ワイヤレスコントローラー (DUALSHOCK 4)(CUH-ZCT1J)

SONY:PS4用 ワイヤレスコントローラー (DUALSHOCK 4)(CUH-ZCT2J)

SONY:PS3用 ワイヤレスコントローラー (DUALSHOCK 3)

QANBA:Q1

QANBA:Drone

QANBA:Q4

Venom:Arcade stick PS4/PS3

KDIT:King Snake 2014

Joytron:REVOLUTION

Etokki:Omni Arcade Stick -Sanwa Edition

BD&A:POWER A FUS1ON Tournament Controller for PS3

BD&A:PS3 Wired Controller Air Flo

SCUF:PROFESSIONAL CONTROLLER FOR PS4

SCUF:PROFESSIONAL CONTROLLER FOR PS3

LEVEL UP:PS2/PS3 Wireless Controller

LEVEL UP:PS2/PS3 Wired Controller

PDP:Mortal Kombat X Fight Pad for PlayStation 4 and PlayStation 3

Saitek:Wired Controller.

AKISHOP:PS360+

SRK:Toodles Cthulhu Multi-Console PCB

Game Stop:Wired Controller

NEOGEO Stick 2 for PS3

Brook Mars Wired Controller

Brook PS4+ Audio Fighting Board



** 対応ジョイスティックが増え次第、記載していきます **
