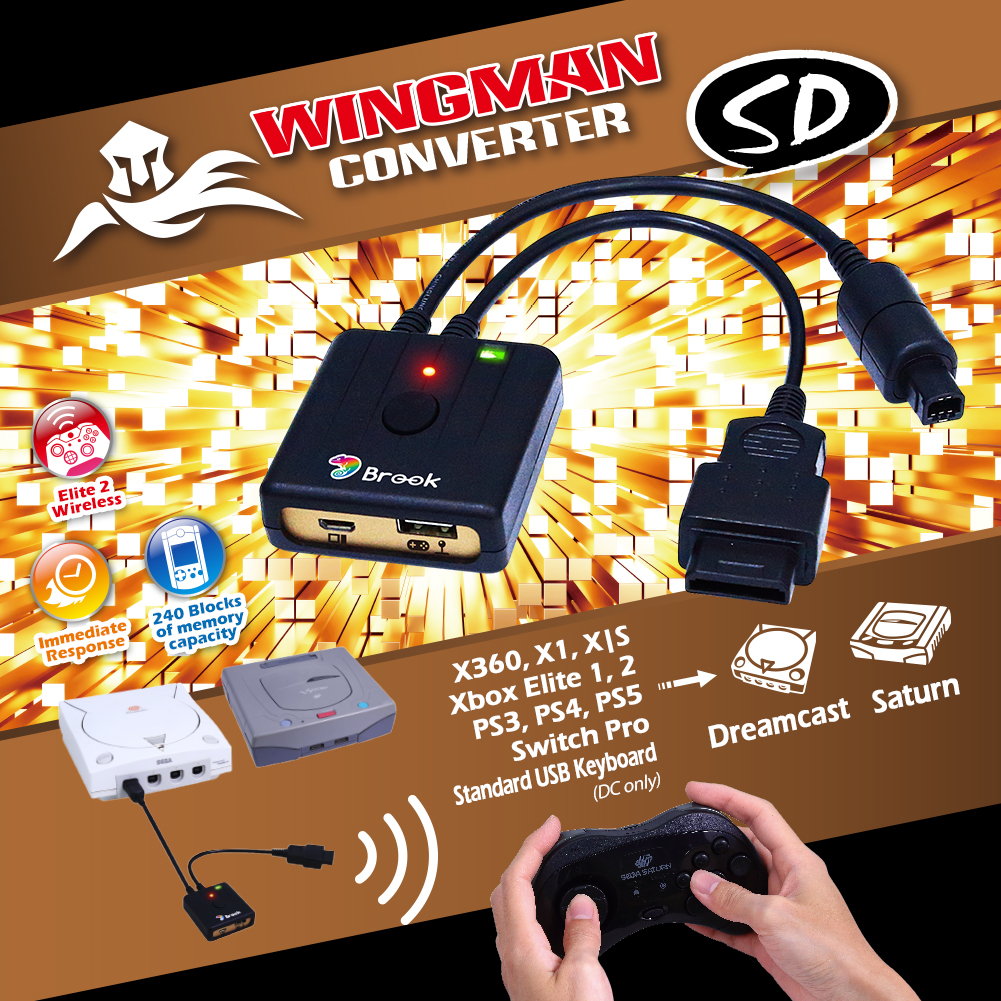

Wingman SD
May the force be with Saturn and Dreamcast...forever.
240 blocks of DC memory
(Firmware upgrade required)!
Support vibration!
Now, it's time to use Xbox Elite Series 2 Controller to play Shenmue!
Let PS4, PS3, Xbox One, Xbox 360 and Switch Pro Controllers insert more power to Saturn and Dreamcast!
20230504 firmware update (V1.4y)
- Controller compatibility update: add to support
8BitDo PRO、Brook Vivid、Wii U PRO Bluetooth、PS5 DualSense Edge
- Optimization and correction
A. Optimize the vibration intensity of the X360 controller on the DC console
B. Optimize the vibration intensity of the PS5 controller
C. Fixed the incompatibility with PS3 CHCHZC2U-A1 controller
D. Fix the problem that the RetroBit 2.4G controller does not respond
E. Fixed the LB RB button swap problem of Razer Atrox fight stick
- Function update: 3DVR simulation
A. Steering wheel game 3DVR function, Select+Left
Introduction
Saturn and Dreamcast are the common memory of a generation, and now we provide more ways to tap the potential of these two consoles. Now you can use Xbox Series X|S (wired use, additional 5V power may be needed on Saturn), wired Xbox One, Xbox 360, PS5, PS4, PS3, SEGA Astro City mini, MEGA Drive mini controllers on them, and the Switch Pro controller, Xbox Elite controller, Xbox Elite Series 2 controller, Xbox adaptive controller, even Retro-Bit Saturn USB controller, Standard USB Keyboard(DC Only), Astro city mini arcade stick, Toodles_Cthulhu_Multi-Console_PCB, NACON DAIJA arcade stick are all supportable.
※ Support to backup DC VMU on PC
- On PC, hold down Start +Up for 2 seconds
- Execute Brook_Dreamcast_VMU_SL_Tool_202011109_2.exe, you can backup DC VMU on PC with this software.
※ Function update: 3DVR simulation
- Steering wheel game 3DVR function, Select+Left
Video
Features
Unboxing
LED
|
Console LED |
Connect to Saturn |
Connect to Dreamcast |
Switching Method* |
Connect to PC |
|
Green LED Permanently on |
3D Controller Mode |
Gamepad Mode |
Select+Triangle |
PC Connecting |
|
Red LED Permanently on |
Standard Mode |
Arcade Stick Mode |
Select+Cross |
|
*The example of the switching method used PS3 / PS4 controller. Please refer to the Corresponding Buttons List when using other controllers.
|
Device LED |
Status |
|
Red LED Permanently on |
The connector and the device are currently connected. |
|
Red LED Slow Blinking (Once every two seconds) |
Wired device is not connected Wireless device is searching for connection… |
|
Red LED Fast Blinking(Seven times per second) |
Wireless pairing mode is ON Searching for pairing device… |
|
Red LED Blinking (Five times per second) |
Turbo-Remap button is being pressed |
|
Red LED Off |
Entering Turbo-Remap Settings |

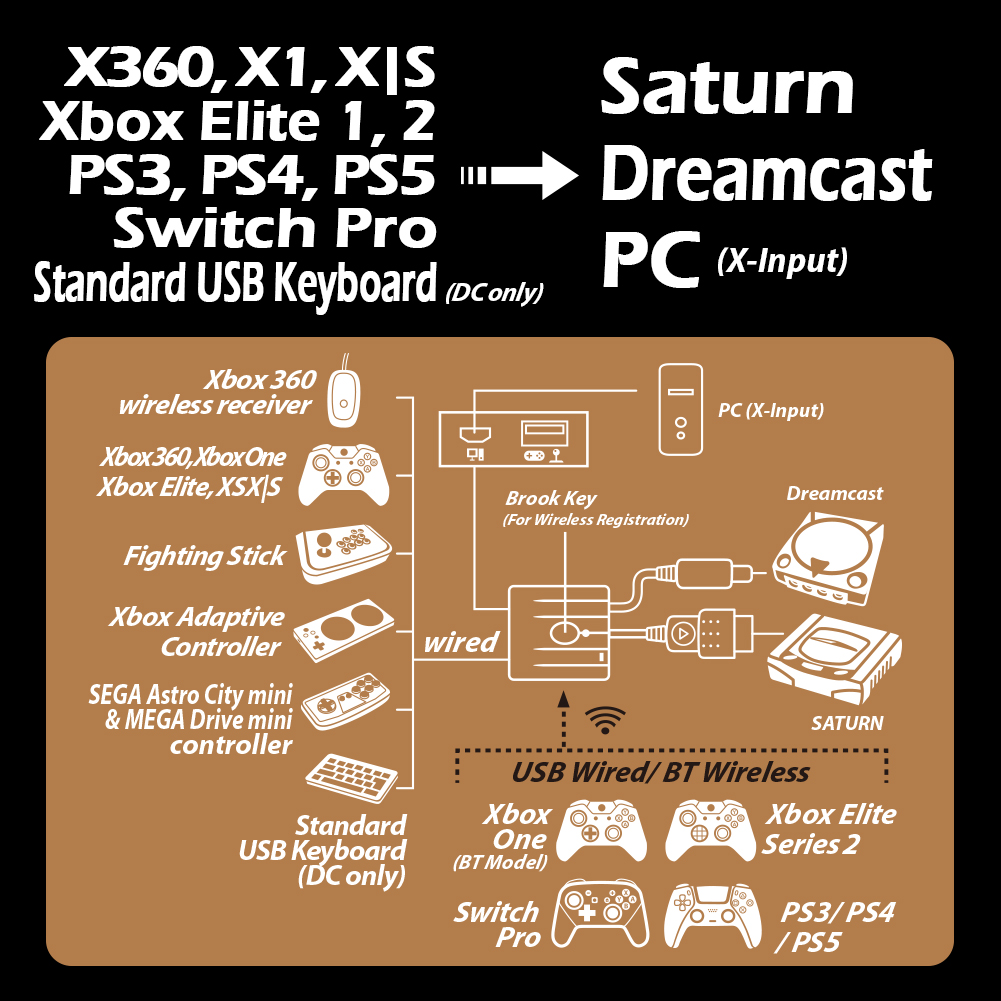

Connecting to the Device
- Connect Wingman SD to Saturn / Dreamcast / PC via port. Permanently light of the Console Green LED of Wingman SD indicates that the connection to the console is successful.
- Wired Connection:
Connect the Xbox 360 / Xbox One / PS3 / PS4 / Switch wired controller or game pad to Wingman SD through the USB port. Some devices with high power consumption, such as the Switch Pro controller, require an external USB power source for normal use.
Using a X360 wireless controller:
Simply connect the wireless X360 wireless receiver to the Wingman SD through the USB port.
Using PS3 / PS4 / Switch Pro wireless controller:
After completing the connection according to the instructions of the Wired Connection, remove the USB cable, and then wake up the PS3 / PS4 / Switch Pro wireless controller.
- Check whether the Device Red LED of the Wingman SD is permanently on. This indicates that the connection is completed.
Connection Pairing Supplementary Instructions
Holding the Brook Key on the Wingman SD for 1 second will activate wireless connection pairing mode. The Wingman SD will engage in pairing with surrounding Bluetooth devices. The pairing mode will end if:
- The connection pairing with the wireless controller is successful.
- The connection pairing is unsuccessful after 90 seconds.
- The Brook Key is held for 1 second.
Switch the input mode on Saturn
The default controller input setting of Wingman SD is “3D Control mode”. When using a standard controller, you can switch to ”Standard mode” manually. The following instructions are based on the Xbox One controller. For those using an other controller, please refer to the Corresponding Buttons List.
Switch to “3D Control mode”:
Press VIEW + Y, the Console Green LED is permanently on.
Switch to “Standard mode”:
Press VIEW + A, the Console Red LED is permanently on.
Switch to “Arcade mode”:
Press VIEW + B, the Console Red LED and Green Led are permanently on.
Switch the input mode on Dreamcast
The default controller input setting of Wingman SD is “Gamepad mode”. When using a arcade stick, you can switch to ”Arcade Stick mode” manually. The following instructions are based on the Xbox One controller. For those using an other controller, please refer to the Corresponding Buttons List.
Switch to “Gamepad mode”:
Press VIEW + Y, the Console Green LED is permanently on.
Switch to “Arcade Stick mode”:
Press VIEW + A, the Console Red LED is permanently on.
Corresponding Buttons List (SEGA SATURN)
| Console | Console | Console | Console | Controller | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SEGA SATURN | SEGA SATURN | SEGA SATURN | SEGA SATURN | Switch | XB1 | X360 | PS5 | PS4 | PS3 | Mega Drive Mini | SEGA Astro City Mini |
| D-Pad | D-Pad | D-Pad | D-Pad | D-Pad (U/D/L/R) | D-Pad | ||||||
| D-Pad | Lx / Ly | D-Pad | D-Pad | Lx / Ly | |||||||
| Rx / Ry | |||||||||||
| A | A | A | A | B | A | A | ╳ | ╳ | ╳ | A | D |
| B | B | B | B | A | B | B | ○ | ○ | ○ | B | E |
| X | X | X | X | Y | X | X | □ | □ | □ | X | A |
| Y | Y | Y | Y | X | Y | Y | △ | △ | △ | Y | B |
| Z | Z | L | Z | L | LB | LB | L1 | L1 | L1 | Z | C |
| C | C | Z | C | R | RB | RB | R1 | R1 | R1 | C | F |
| L | L | R | L | ZL | LT | LT | L2 | L2 | L2 | ||
| R | R | C | R | ZR | RT | RT | R2 | R2 | R2 | ||
| L3 | LSB | LSB | L3 | L3 | L3 | ||||||
| R3 | RSB | RSB | R3 | R3 | R3 | ||||||
| START | START | START | START | + | MENU | START | OPTIONS | OPTIONS | Start | Start | Start |
| - | VIEW | BACK | Create | SHARE | Select | Mode | Credit | ||||
| Capture | Touch Button | Touch Button | |||||||||
| START | START | START | START | Home | Xbox Guide | Xbox Guide | PS | PS | PS | ||
| START | START | START | START | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key |
| Digital 3D Controller |
Analog 3D Controller |
Digital 3D Controller Arcade |
Standard Mode | ||||||||
Corresponding Buttons List (SEGA Dreamcast)
| Console | Console | Controller | |||||||
|---|---|---|---|---|---|---|---|---|---|
| SEGA Dreamcast |
SEGA Dreamcast |
Switch | XB1 | X360 | PS5 | PS4 | PS3 | Mega Drive Mini | SEGA Astro City Mini |
| D-Pad (U/D/L/R) | D-Pad (U/D/L/R) | D-Pad (U/D/L/R) | D-Pad | ||||||
| Lx / Ly | D-Pad | Lx / Ly | |||||||
| ABXY | Rx / Ry | ||||||||
| A | A | B | A | A | ╳ | ╳ | ╳ | A | D |
| B | B | A | B | B | ○ | ○ | ○ | B | E |
| X | X | Y | X | X | □ | □ | □ | X | A |
| Y | Y | X | Y | Y | △ | △ | △ | Y | B |
| LT | Z | L | LB | LB | L1 | L1 | L1 | Z | C |
| RT | Z | R | RB | RB | R1 | R1 | R1 | C | F |
| LT | C | ZL | LT | LT | L2 | L2 | L2 | ||
| RT | C | ZR | RT | RT | R2 | R2 | R2 | ||
| L3 | LSB | LSB | L3 | L3 | L3 | ||||
| R3 | RSB | RSB | R3 | R3 | R3 | ||||
| START | START | + | MENU | START | OPTIONS | OPTIONS | Start | Start | Start |
| - | VIEW | BACK | Create | SHARE | Select | Mode | Credit | ||
| Capture | Touch Button | Touch Button | |||||||
| START | START | Home | Xbox Guide | Xbox Guide | PS | PS | PS | ||
| START | START | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key | Brook Key |
| controller mode | Arcade Mode | ||||||||
Turbo Setting
The following instructions are based on the Xbox One controller. For those using an other controller, please refer to the Corresponding Buttons List.
Turbo Function Settings
STEP01.
Press Xbox GUIDE button & VIEW button to enter setting mode.
STEP02.
Hold VIEW button & tap the button which you want to set up Turbo function.
STEP03.
Press MENU button to save the setting.
STEP04.
Press Xbox GUIDE button to save the setting.
Cancelling Turbo Function
STEP01
Press Xbox GUIDE button & VIEW button to enter setting mode.
STEP02
Press MENU button & VIEW button to cancel Turbo setting.
STEP03
Press Xbox GUIDE button to exit setting mode.
Turbo Function Settings
Cancelling Turbo Function
Remap Setting
The following instructions are based on the Xbox One controller. For those using an other controller, please refer to the Corresponding Buttons List.
Button Remap Settings
STEP01.
Press Xbox GUIDE button & MENU button to enter setting mode.
STEP02.
Press the button which you want to assignment.
STEP03.
Hold VIEW button & press the buttons which you want to Remap.
STEP04.
Press MENU button to save the setting.
STEP05.
Press Xbox GUIDE button to save the setting.
Cancelling Button Remap Settings
STEP01.
Press Xbox GUIDE button & MENU button to enter setting mode.
STEP02.
Press MENU button & VIEW button to cancel Remap setting.
STEP03.
Press Xbox GUIDE button to exit setting mode.
Button Remap Settings
Cancelling Button Remap Settings
Notice
*Each Wingman SD can only connect to a single Xbox 360 / Xbox One / PS3 / PS4 / Switch device. Wingman SD supports most of the accessories that are compatible with original factory specifications. To expand the number of supported accessories, firmware will be updated irregularly.
*Wingman SD do not support headset/microphone function which provides by controller audio jack.
Where To Buy
Compatibility
| Brand | Kind | Name |
|---|---|---|
| XBOX ONE & XBO X360 | ||
| BD&A | Controller | POWER A FUSION Pro Controller for Xbox One |
| CHASDI | Controller | CHASDI Xbox One Wireless Controller |
| DOBE | Controller | DOBE X ONE Wired Controller |
| HORI | Controller | HORIPAD for Xbox One [XBO-001] |
| Mad Catz | Controller | Xbox 360 Street Fighter IV FightPad |
| Microsoft | Controller | Xbox 360 Wireless Controller |
| Microsoft | Controller | Xbox 360 Wired Controller |
| Microsoft | Controller | Xbox One Elite Series Controller (Wireless) |
| Microsoft | Controller | Xbox One Elite Series 2 Controller (Wireless) |
| Microsoft | Controller | Xbox One Controller |
| Microsoft | Controller | Xbox One Controller with 3.5mm Headphone |
| Microsoft | Controller | Xbox 360 Wireless Receiver |
| Microsoft | Controller | Xbox One S Controller |
| PDP | Controller | Xbox One Mirror's Edge Catalyst Wired Controller |
| PDP | Controller | PDP Wired Controller for Xbox One & PC - Camo |
| PDP | Controller | Mortal Kombat X Fight Pad for Xbox One and Xbox 360 |
| PDP | Controller | Afterglow Wired Controlle |
| PDP | Controller | PDP Wired Controller |
| PDP | Controller | PDP Stealth Series Wired Controller |
| POWER A | Controller | POWER A FUSION CONTROLLER FOR XBOX ONE |
| POWER A | Controller | PowerA Fusion Pro Wired Controller for Xbox One |
| POWER A | Controller | PowerA Wired Controller for Xbox One |
| POWER A | Controller | POWER A Spectra Illuminated Controller |
| PowerA | Controller | PowerA Mini Controller for xbox one |
| PowerA | Controller | PowerA Enhanced Wired Controller for Xbox One |
| RAZER | Controller | razer wolverine ultimate |
| RAZER | Controller | razer wolverine tournament edition |
| SCUF | Controller | PROFESSIONAL GAMING CONTROLLER FOR XBOX ONE |
| ACTIVISION | Fight Stick | Canberra |
| ACTIVISION | Fight Stick | GUTAR HERO |
| ACTIVISION | Fight Stick | DJ HERO |
| HARMONIX | Fight Stick | Rickenbacker 325 |
| HIT BOX | Fight Stick | XBOX ONE Hit Box Fight Stick |
| HORI | Fight Stick | Xbox 360 Real Arcade Pro.EX SA |
| HORI | Fight Stick | HORI XBOX360 鐵拳6 wireless Fight Stick |
| HORI | Fight Stick | Xbox 360 Real Arcade Pro.VX SA |
| HORI | Fight Stick | Blazblue stick |
| HORI | Fight Stick | PRO. V 隼_[XBO-004] |
| KDIT | Fight Stick | 2013 王蛇街機大搖桿 |
| KONAMI | Fight Stick | Dance dance revolution |
| Mad Catz | Fight Stick | Mad Catz Ultra Street Fighter® IV Arcade FightStick™ Tournament Edition 2 for Xbox 360 |
| Mad Catz | Fight Stick | Arcade FightStick Tournament Edition 2 |
| Mad Catz | Fight Stick | Arcade FightStick PRO for Xbox 360 |
| MayFlash | Fight Stick | Fight Stick - PS3/Xbox 360/PC - Arcade Fighting Stick V2 |
| MayFlash | Fight Stick | MayFlash F300 |
| RAZER | Fight Stick | Razer Atrox 悍猛狂獅 |
| 拳霸 | Fight Stick | 拳霸 Q4 三合一平台 頂級街機搖桿 |
| PS3 & PS4 | ||
| ASTRO | Controller | ASTRO Gaming C40 TR 競技搖桿 |
| HORI | Controller | HORI wired controller light |
| HORI | Controller | HORIPAD3 TURBO |
| HORI | Controller | ファイティングコマンダー4 |
| MADCATZ | Controller | Mad Catz PS3 Street Fighter IV Arcade Fight Stick |
| MADCATZ | Controller | Street Fighter®V FightPad PRO™ for PS4 & PS3 |
| MADCATZ | Controller | PS3 Mad Catz Street Fighter X Takken Fight Pad |
| Nacon | Controller | REVOLUTION Pro Controller |
| Nacon | Controller | Nacon PS4 Revolution Unlimited Pro Controller |
| PDP | Controller | Mortal Kombat X Fight Pad for PlayStation 4 and PlayStation 3 |
| Razer | Controller | Razer Raiju Gaming Controller |
| Razer | Controller | Razer raiju tournament edition |
| Razer | Controller | Razer raiju ultimate |
| Razer | Controller | Razerraion fightpad |
| SCUF | Controller | PROFESSIONAL CONTROLLER FOR PS3 |
| SONY | Controller | Wireless Controller |
| SONY | Controller | PS4原廠DS4 光條觸碰板 無線震動手把 |
| 北通 | Controller | 阿修羅TE |
| Konami | Dancing mat | Dancing mat |
| Activision | DJ Turntable | DJ HERO |
| HARMONIX | Drum | Rock Bond |
| Red Octone | Drum | GUITAR HERO |
| etokki | Fight Stick | Omni Arcade Stick -Sanwa Edition |
| HORI | Fight Stick | PRO V4 大搖桿 |
| HORI | Fight Stick | HORI Real Arcade Pro (Soul Calibur VI Edition) |
| HORI | Fight Stick | DEAD OR ALIVE 5 Last Round 対応スティック |
| HORI | Fight Stick | Real Arcade Pro.3 |
| HORI | Fight Stick | RAP V3-SA |
| HORI | Fight Stick | Wireless FS-3 無延遲搖桿 |
| HORI | Fight Stick | WIRELESS REAL ARCADE PRO.V3 |
| HORI | Fight Stick | Real Arcade Pro. 4 Premium VLX |
| HORI | Fight Stick | PS3 PS4專用 PS4-043 Mini 格鬥搖桿 |
| HORI | Fight Stick | PS3 Hori Fighting Min3 |
| HORI | Fight Stick | HPRI PS4/PC 周邊 Fighting Edge刃格鬥搖台 |
| HORI | Fight Stick | Real Arcade pro V HAYABUSA 2017 version |
| HORI | Fight Stick | Hori Real Arcade Pro N Hayabusa for PlayStation®4 |
| HORI | Fight Stick | Hori Fighting Stick V3 |
| HORI | Fight Stick | Soul Calibur IV Arcade Fight Stick for PS3 Playstation 3 |
| Joytron | Fight Stick | 霸王REVOLUTION |
| KDIT | Fight Stick | 2014年王蛇機 金色特仕版電競格鬥大型搖桿 |
| Mad Catz | Fight Stick | WWE All STARS BrawlStick |
| MADCATZ | Fight Stick | Street Fighter Tournament Edition S |
| MADCATZ | Fight Stick | Street Fighter®V Arcade FightStick™ Tournament Edition 2+ for PS4 & PS3 |
| MADCATZ | Fight Stick | Street Fighter®V Arcade FightStick™ Alpha for PS4 & PS3 |
| MADCATZ | Fight Stick | PS3 Mad Catz 快打旋風4 TE |
| MADCATZ | Fight Stick | PS3 Mad Catz 快打旋風5 TE R2 |
| MAKESTICK | Fight Stick | PRO For PS3 大搖桿 |
| MAYFLASH | Fight Stick | Arcade Stick F500 Elite |
| Nacon | Fight Stick | NACON DAIJA ARCADE STICK 大蛇搖桿 |
| QANBA | Fight Stick | 拳霸Q1街機搖桿 |
| QANBA | Fight Stick | Drone |
| QANBA | Fight Stick | QANBA 拳霸 Q2 |
| QANBA | Fight Stick | 拳霸Q3 |
| Razer | Fight Stick | Razer Panthera Evo Arcade Stick |
| Razer | Fight Stick | Razer Panthera Arcade Stick for PlayStation®4 |
| SEGA | Fight Stick | VIRTUA STICK HIGH GRADE PS3 |
| Venom | Fight Stick | Venom arcade stick PS4/PS3 |
| GUITAR HERO | Guitar | GUITAR |
| Activision | Gun | Calelai Dangerous Hunts2013 |
| Activision | Gun | Calelai Dangerous Hunts2011 |
| Switch | ||
| Nintendo | Controller | Switch Pro |
| 8BITDO | Fight Stick | N30 Arcade Stick |
