PS3/PS4 to NEOGEO Super Converter

Bring your NEOGEO New life!!
Brook Super Converter series makes old controllers compatible with new consoles. This not only saves you money but also means that you can use the controllers you have grown accustomed to. Installation and use of the PS3/PS4 to NeoGeo Controller Adapter is effortless.

Overview

Brook Super Converter series makes old controllers compatible with new consoles. This not only saves you money but also means that you can use the controllers you have grown accustomed to. Installation and use of the PS3/PS4 to NeoGeo Controller Adapter is effortless.

Features

  • Compatible with gamepads and joysticks
  • Auto-register controllers
  • Optimal button mapping
  • Vibration support (PC only)
  • Lightweight and USB-sized
  • Hot swapping
  • Full compliance with environmental standards
  • Firmware upgrade

Unboxing

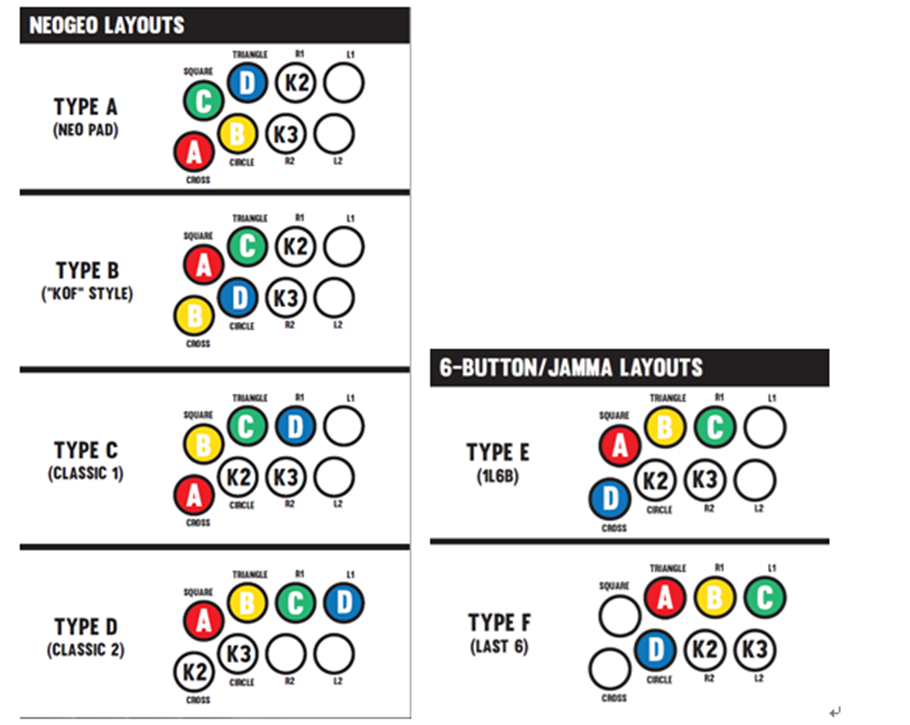

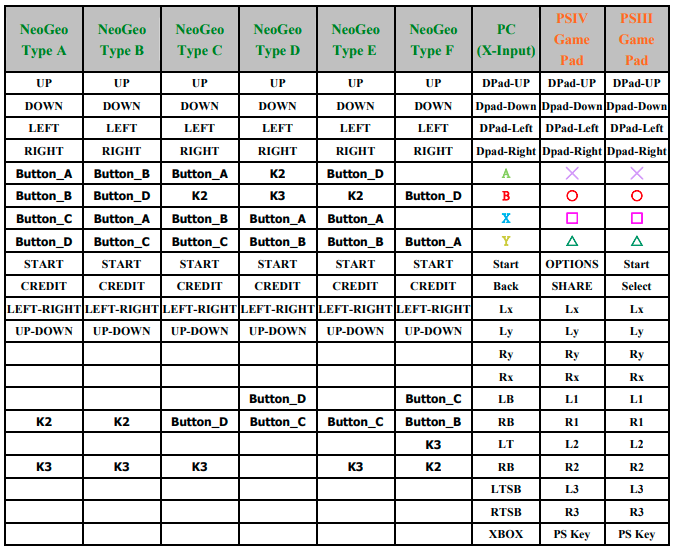

Button Configuration

By pressing combo keys to switch between Type A, Type B and Type C.
(1) PS + R1( D ) -> Type C
(2) PS + Triangle ( D ) -> Type A
(3) PS + Circle ( D ) -> Type B

All key functions map perfectly!

Turbo Setting

PS3 Turbo Function Settings

STEP01.
Press SELECT button & PS button to enter setting mode.

STEP02.
Hold SELECT button & tap the button which you want to set up Turbo function.

STEP03.
Press START button to save the setting.

STEP04.
Press PS button to exit setting mode.




PS3 Cancelling Turbo Function

STEP01.
Press SELECT button & PS button to enter setting mode.

STEP02.
Press SELECT button & START button to cancel Turbo setting.

STEP03.
Press PS button to exit setting mode.











PS4 Turbo Function Settings

STEP01.
Press PS button & SHARE button to enter setting mode.

STEP02.
Hold SHARE button & tap the button which you want to set up Turbo function.

STEP03.
Press OPTIONS button to save the setting.

STEP04.
Press PS button to save the setting.




PS4 Cancelling Turbo Function

STEP01.
Press PS button & SHARE button to enter setting mode.

STEP02.
Press SHARE button & OPTIONS button to cancel Turbo setting.

STEP03.
Press PS button to exit setting mode.

PS3 Turbo Function Settings




PS3 Cancelling Turbo Function



PS4 Turbo Function Settings





PS4 Cancelling Turbo Function

Remap Setting

PS3 Button Remap Settings

STEP01.
Press START button & PS button to enter setting mode.

STEP02.
Press the button which you want to assignment.

STEP03.
Hold SELECT button & press the buttons which you want to Remap.

STEP04.
Press START button to save the setting.

STEP05.
Press PS button to save the setting.



PS3 Cancelling Button Remap Settings

STEP01.
Press START button & PS button to enter setting mode.

STRP02.
Press SELECT button & START button to cancel Remap setting.

STEP03.
Press PS button to exit setting mode.







PS4 Button Remap Settings

STEP01.
Press PS button & OPTIONS button to enter setting mode.

STEP02.
Press the button which you want to assignment.

STEP03.
Hold SHARE button & press the buttons which you want to Remap.

STEP04.
Press OPTIONS button to save the setting.

STEP05.
Press PS button to save the setting.



PS4 Cancelling Button Remap Settings

STEP01.
Press PS button & OPTIONS button to enter setting mode.

STEP02.
Press SHARE button & OPTIONS button to cancel Remap setting.

STEP03.
Press PS button to exit setting mode.

PS3 Button Remap Settings





PS3 Cancelling Button Remap Settings

PS4 Button Remap Settings





PS4 Cancelling Button Remap Settings

Disclaimer

Each Brook Controller Adapter can only handle one PS3/PS4 controller at a time.

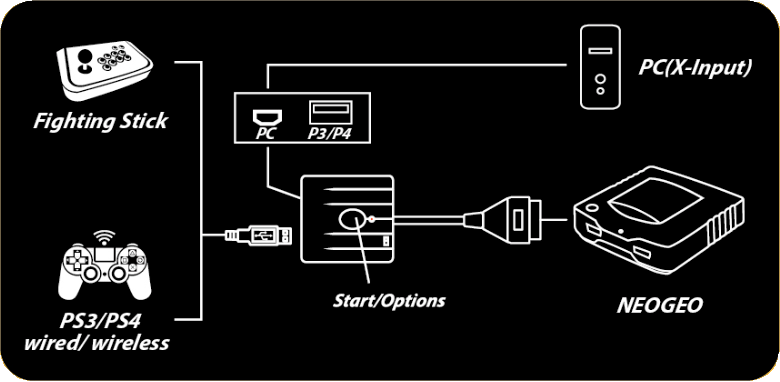

PS3/PS4 controllers connect to the Controller Adaptor automatically, but must be connected with a USB cable at first time use for the purpose of registering the controller.

Compatibility

The list below indicates the controllers/sticks/wheels that have been tested to be compatible or not compatible with the converter.
For those controllers/sticks/wheels which are not listed indicates that they have not been tested yet.

Compatible:

MadCatz:Street Fighter Tournament Edition S
MadCatz:Street Fighter®V Arcade FightStick™ Tournament Edition 2+ for PS4 & PS3
MadCatz:Street Fighter®V Arcade FightStick™ Alpha for PS4 & PS3
MadCatz:PS3 Street Fighter limited Arcade FightStick
MadCatz:MadCatz Arcade FightStick TE2
MadCatz:Street Fighter®V FightPad PRO™ for PS4 & PS3
HORI:PRO V4 大搖桿
HORI:DEAD OR ALIVE 5 Last Round
対応スティック
HORI:Wireless FS-3
HORI:Real Arcade Pro.3
HORI:RAP V3-SA
HORI:WIRELESS REAL ARCADE PRO.V3
HORI:Real Arcade Pro. 4 Premium VLX
HORI:PS4-043 Mini
HORI:Hori Fighting Edge 刃 for PS3
HORI:PS3 Hori Fighting Min3
HORI:PS4 -Project DIVA- X HD
HORI:FIGHTING COMMANDER
HORI:PS3 Wired HORI Fighting Commander 3
HORI:HORIPAD3 TURBO
HORI:HORI PS4 Wired Controller  [PS4-025]
HORI:ファイティングコマンダー4
HORI:ホリパッド4 FPS ブラック
HORI:ホリパッド4 FPS ブルー
Sony:PS4 Wireless Controller
Sony:PS4 Slim DS4 Wireless Controller
Sony:PS3 Wireless Controller
Sony:PS4 DUALSHOCK 4
QANBA:Q1
QANBA:Drone
QANBA:Q4
BD&A:POWER A FUS1ON Tournament Controller for PS3
BD&A:PS3 Wired Controller Air Flo
SCUF:PROFESSIONAL CONTROLLER
FOR PS4
SCUF:PROFESSIONAL CONTROLLER
FOR PS3
SEGA:VIRTUA STICK HIGH GRADE PS3
SEGA:VIRTUA STICK HIGH GRADE PS3
KDIT:STREET FIGHTER IV Arcade FightStick 2013
KDIT:King Snake 2014
LEVEL UP:PS2/PS3 Wireless Controller
LEVEL UP:PS2/PS3 Wired Controller
PDP:Mortal Kombat X Fight Pad for PlayStation 4 and PlayStation 3
SRK:Toodles Cthulhu Multi-Console PCB
PS360+:AKISHOP
Game Stop:Wired Controller
Saitek:Wired Controller
Venom:Arcade stick PS4/PS3
Joytron:REVOLUTION
Etokki:Omni Arcade Stick -Sanwa Edition
Saitek:Wired Controller.
