PS4+ Audio Fighting Board
“More voice,
better than none.”

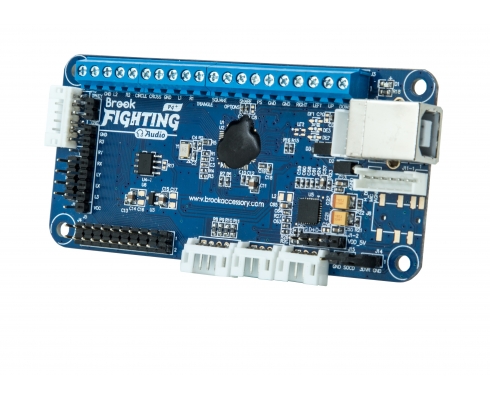

The Brook Fighting Board PCB supports PS3 and PS4 arcade, sticks.
Compatible with: PS4 / PS3 / PC / SWITCH
Support Brook UFB-UP5!
20230330 firmware update (V1.9)
- Add Capcom Tournament Mode
Overview
Features
- Audio Support (PS4)
- Two Analog Sticks Support
- No 8 minutes timeout issue (PS4)
- X-Input Support (PC)
- Console Auto Detection
- Support two SOCD modes
Mode1：
Left + Right=Neutral、”Up priority” in all Up + Down = Up
Mode2：
Second-Input Priority,Left + Right=Right、Right + Left = Left - Multi-Console Support
PS3/PS4/PC/SWITCH - Turbo Support
- Effortless Installation
Screw terminal block fore easy connections - Firmware Upgradable via USB
*Brook provides two kinds of SOCD cleaner mode which is conform with international competition standards, such as EVO, CPT etc.
Even though we still suggest you to follow and check the latest rules of every competition. If you have any problems, please feel free to contact us.
Emulate function
LS, RS, DP Emulate
For those who don't have LS, RS, DP switch, it's able to press combo keys for 3 seconds to swich between LS, RS, DP modes.
How to Connect
Button Configuration
| PCB Define | PS4 | PS3 | XID | SWITCH |
|---|---|---|---|---|
| UP | Directional Pad |
Directional Pad |
Directional Pad |
Directional Pad |
| DOWN | ||||
| LEFT | ||||
| RIGHT | ||||
| SQUARE | □ | □ | X | Y |
| TRIANGLE | △ | △ | Y | X |
| R1 | R1 | R1 | RB | R |
| L1 | L1 | L1 | LB | L |
| CROSS | Χ | Χ | A | B |
| CIRCLE | ○ | ○ | B | A |
| L2 | R2 | R2 | RT | ZR |
| R2 | L2 | L2 | LT | ZL |
| L3 | L3 | L3 | LSB | LTSB |
| R3 | R3 | R3 | RSB | RTSB |
| SHARE | SHARE | SELECT | BACK | - |
| OPTIONS | OPTIONS | START | START | + |
| LX | L-Stick | L-Stick | L-Stick | L-Stick |
| LY | ||||
| RX | R-Stick | R-Stick | R-Stick | R-Stick |
| RY | ||||
| PS | PS | PS | Guide | Home |
| TP KEY | Toutch Key | Capture |
Manual switching mode
Hold on button then plug into consoles
- 1P button : PS3 Controller mode
- 2P button : PS4 Controller mode
- 3P button : XID Controller mode
- 1K button : SWITCH Controller mode
