X One SE Adapter

 One Controller,
 All Platform
Use XSX|S / Elite Series 1&2 / Xbox one Controller on XSX|S, PS5, PS4 and Switch, Support Audio Function and Motion Control!

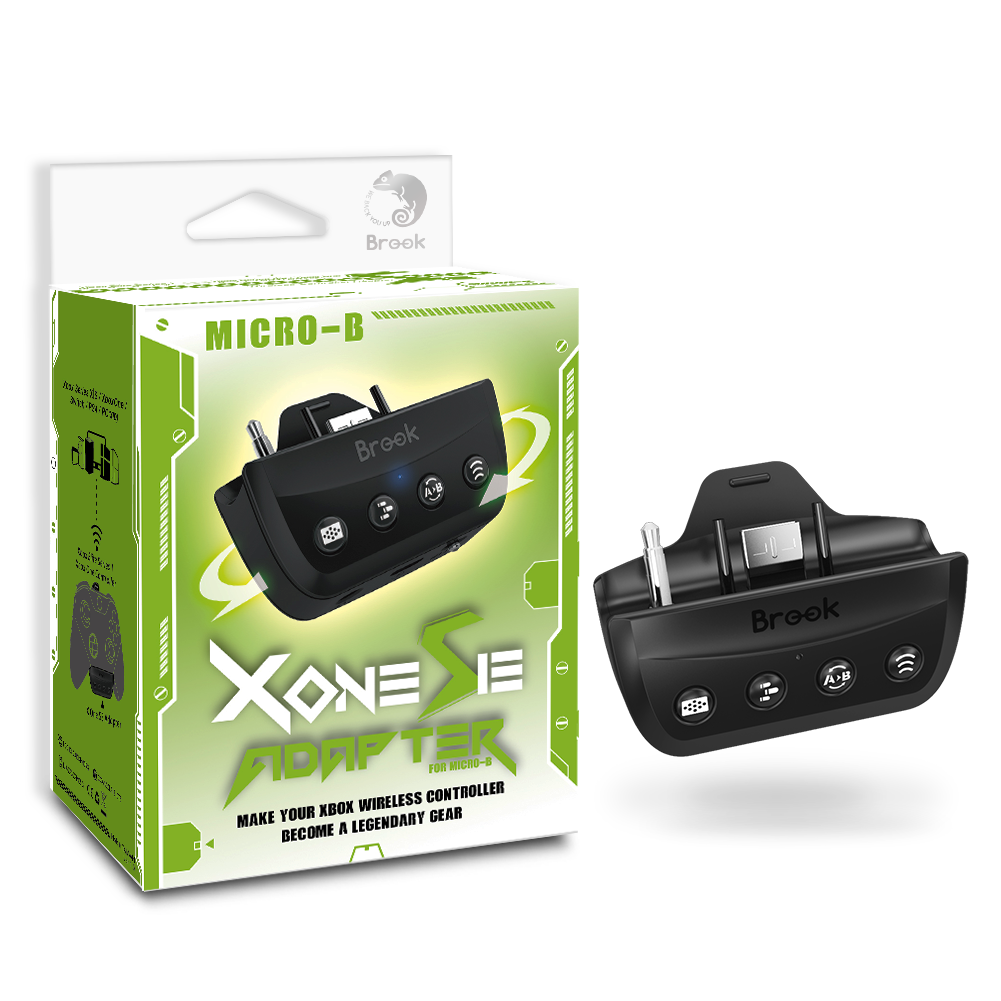

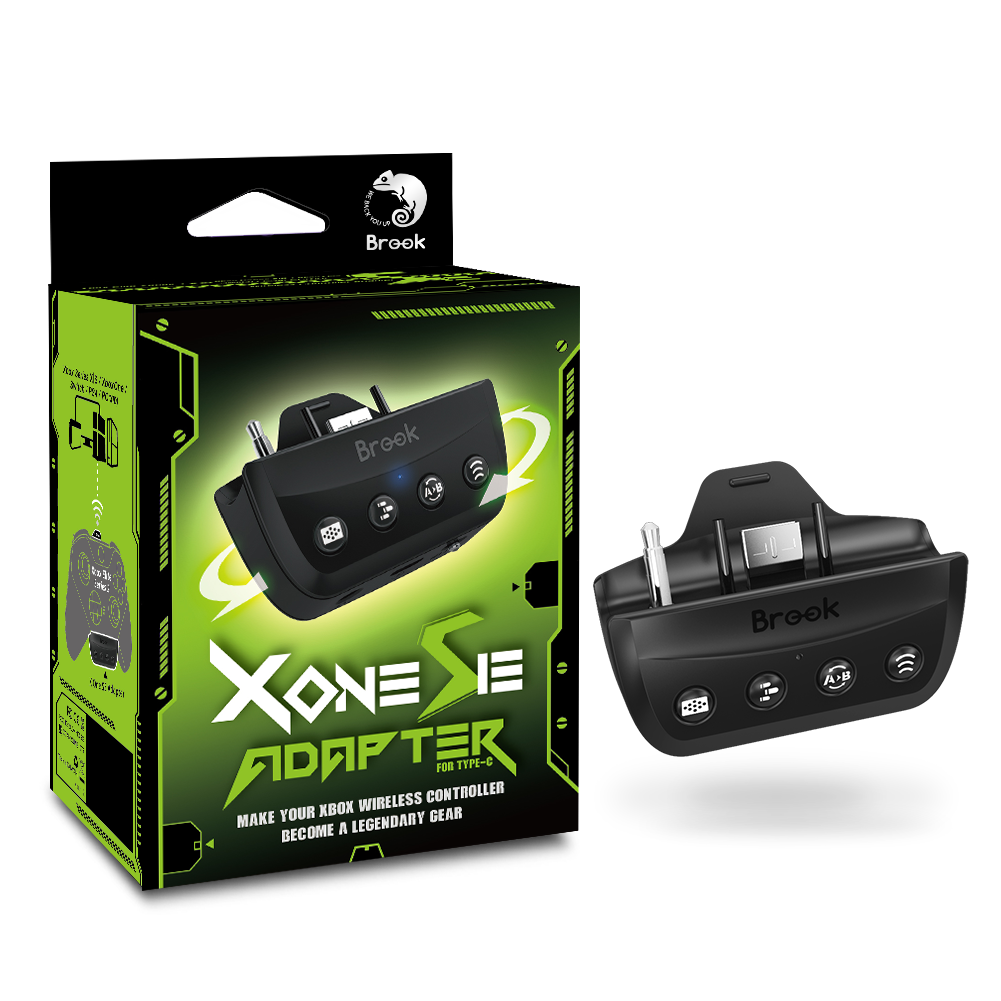

2 versions of X One SE
- Mirco-B, Type-C -
- play PS4 Games on PS5 -

Visit the X One Series -

20211008 firmware update (V1.2p)
- Fix drive problem when use in NS mode on Steam
- Fix vibration abnormality when use in NS mode to play It Takes Two on Steam
- Adjust the 3DVR calibration value to fix auto moving problem when use in NS mode to play It Takes Two on Steam

Overview



X One SE, an adapter for Xbox wireless controller.
It makes Cross-Platform gaming come true.

Brook completely unleashes the power of ALL series of Xbox controllers, giving gamers the freedom of choosing any controller to play on any console they want.

Support Controller
Type-C for Xbox Series X|S and Elite Series 2
Controller.
Mirco-B for Xbox One and Elite series 1 Controller.


Support Platform
Xbox Series X|S / Xbox One / PlayStation 4 / PS4 games on PS5Switch / iOS / Android / PC(Steam)

Video

Born with Premium Quality





The style and weight balance design also matches the original controller made by Microsoft seamlessly.

It Perfectly Fits In the Xbox Elite Wireless Controller travel case, allowing you to charge wirelessly, play endlessly, anywhere, anytime.

Easy to Assemble Durable in use





JUST FIT IN

The polished design quality has undergone comprehensive enhancement regarding weight, appearance, and volume, yet retaining the Excellent Operating feel of the original Xbox controller.



Easy To Assemble

Just plug in the adapter to the bottom of the controller, connect the 2 signal ports, and switch to your selected console to Play Instantly.

STEP 1.

Slide the X One SE adapter directly into your XboxOne controller.

STEP 2.
Plug the mirco usb cable to connect the adapter & the controller.



Operation Intuitive

Enable all Xbox series controllers to be used on
Switch / PS4 / PS5(PS4 games) / XSX|S / Xbox One / PC

6 axis MOTION CONTROL

For both PS4 and Switch, X One SE provides motion control feature.
It’s time to release full potential of your controller.
# PS4 & Switch

Turbo & Button Hold





Combine Turbo function with the Button hold functions to achieve AFK automated actions.
Eliminating all redundant and boring operations, which also extends the life of the buttons on the controller.
# PS4 & Switch & PC







Turbo Setting & Cancel Video





  • Turbo Function Settings
    • Buttons that can be set as Turbo function buttons include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB(hereinafter referred to as FK).
    • Press the “Turbo button” and the FK button at the same time, the controller will vibrate to indicate the successful setting.

      EX: If you press "Turbo button" and "A" button at the same time, then "A" button can be turbo fire.
  • Cancelling Function
    • Cancellation of single button turbo function:
           If you press the "Turbo button” and the FK button that has been configured with the turbo function, the controller will vibrate to indicate that the setting is canceled.
           EX: If you press the "Turbo button” and the "A" button at the same time, the "A" button will cancel the turbo fire.
    • Cancellation of all button turbo function:
      Press and hold the “Turbo button” for 2 seconds, the controller will vibrate 3 times to cancel all the settings.
  • v1.1t update, add turbo speed adjustment:
    • The default is 10Hz, can be set as 5Hz/7.5Hz/12.5Hz/15Hz
    • Turbo button + Dpad UP: speed up
    • Turbo button + Dpad DOWN: speed down
      Click to see more and update!



Touchpad Simulation







2 modes to simulate PS4 touchpad commands.
Easy mode for normal using, and Full mode for complete control.
# PS4









Use of Simulated Touchpad Video





  • Use of Simulated Touchpad
    • When using on PS4, press and hold the X One SE's "Capture/Touchpad Simulate button” and the controller's right analog stick(RS) to simulate touchpad operation.

      The default mode of “Capture/Touchpad Simulate button” is "Easy mode", and with RS, you can simulate pressing the touchpad.

      However, you can enter "Full mode" temporarily by holding down the “Capture/Touchpad Simulate button” ; in this mode, you can simulate more complete touchpad operation; RS simulates the track of sliding on the touchpad, and RSB simulates pressing the touchpad.

      If you release the “Capture/Touchpad Simulate button” in "Full mode", it will return to "Easy mode" again.



My Mapping is Wonderful







Remap function supported.
Customize your mapping, gotta go your own way!
# PS4 & Switch











Remap Setting & Cancel Video





  • Remap Function Settings
    • Buttons that can be Remap include: A, B, X, Y, LB, RB, LT, RT, LSB, RSB and 4 paddles for the Xbox One Elite Series 2 itself(hereinafter referred to as FK).
      Step 1. Choosing a FK button:
      Press the “Remap button” and FK button at the same time. The LED of the controller will turn off.
      Step 2. Choosing button to be set:
      Press all keys that need to be assigned to FK at the same time and the controller will vibrate. When all keys are     released, the LED will light up again to indicate successful setup.
  • Cancelling Function
    • Cancellation of single button remap function:
           Press the "Remap button" and the FK button with the Remap function, release it and press the FK button again to redefine the FK function.
           EX: If you press the “Remap button” and the “A” button that has been set to X+Y at the same time, release the button and press the A button again, then the X+Y setting on the “A” button will be cancelled.
  • Cancellation of all button remap function:
         Press and hold the “Remap button” for 2 seconds, the controller will vibrate 3 times to cancel all the settings.

Use on Switch

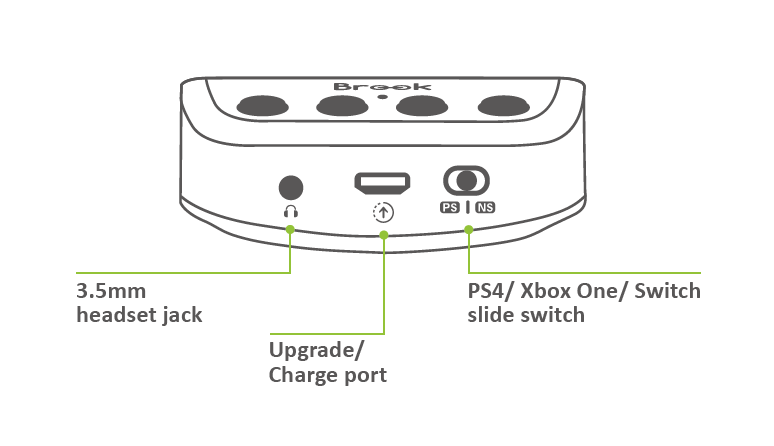

  1. Toggle the "PS4/Xbox One/Switch slide switch" to where it is labeled "NS".





  2. Wired Connection:
    Simply connect the controller to console via X One Adapter SE's "Upgrade/Charge port".





  3. Wireless Connection:
    The first time you use the X One Adapter SE, you need to pair it with the wireless controller: go to the "Controller" screen on your console. After waking up the controller, press and hold the “Hold/Wireless pairing button” of X One Adapter SE for 2 seconds to make the LED of X One Adapter SE blink red and blue alternately, and wait for a few seconds until the LED of X One Adapter SE shows a constant blue light. After that, you only need to wake up the controller every time you use the X One Adapter SE.

Wired Connection Video

Wireless Connection Video

Use on PS4

  1. Toggle the "PS4/Xbox One/Switch slide switch" to where it is labeled "PS".




  2. Wired Connection:
    Simply connect the controller to console via X One Adapter SE's "Upgrade/Charge port".






  3. Wireless Connection:
    The first time you use the X One Adapter SE, you need to pair it with the wireless controller: go to the "Bluetooth Device" screen and select "Wireless Controller" on your console setting. After waking up the controller, press and hold the “Hold/Wireless pairing button” of X One Adapter SE for 2 seconds to make the LED of X One Adapter SE blink red and blue alternately, and wait for a few seconds until the LED of X One Adapter SE shows a constant blue light. After that, you only need to wake up the controller every time you use the X One Adapter SE.

Wired Connection Video

Wireless Connection Video

Use on Xbox Series X/Xbox Series S/Xbox One/PC

  1. Toggle the "PS4/Xbox One/Switch slide switch" to the bar labeled between "PS" and “NS”.
  2. In this mode, the X One Adapter SE is set to off, please use the controller as a normal connection.

    Note: If you need to use Remap/Turbo/Hold function when connecting to a PC, it is recommended that you connect in PS4 simulation mode.

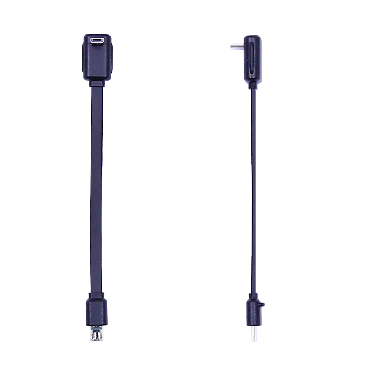

X One SE Micro-B Cable

  • To experience the power of X One SE Adapter on your Xbox One controller, you need the Xone SE Micro-B Cable.
  • Meets the specifications of the Xone SE series and works with both Xone SE Type-C and Xone SE Micro-B.
  • Worried about cable damage? Now you have a replacement solution!

Funtion list

   X One SE Adapter PS4

  Xbox Series X|S

Xbox One

  Switch

Wired Mode

O O O

Wireless Mode

O O O

Audio Function

O O Χ

Motion Control

O Χ O

Turbo/Remap/
Hold Function

O

Χ

O

PC Connection O

O

O

STEAM Connection O O O

                                                                                 Driver may needed

Review



Notice

  1. X One SE is no built-in battery, so you need to use it with an Xbox controller.
  2. X One SE powered by Xbox controller. We suggest using a stable voltage "lithium battery/lithium rechargeable battery”, or the Microsoft original“Xbox Rechargeable Battery" in the Xbox controller for the best experience.
  3. Please do NOT update the last firmware of the Xbox Elite 2 and Xbox one controller.
    (Firmware no. 5.11.3118.0) It will cause these controllers limited to wired use with our converters on any console platform.

Where to buy

X One SE Adapter (Type-C)




X One SE Adapter (Mirco-B)




X One SE Adapter Cable (Mirco-B, Type-C)

                                                  Coming Soon
