Wingman NS
Make PS and Xbox controller serve your Switch.
Use PS / Xbox controller and arcade stick on your Switch.
20210625 firmware update (V1.3)
- Fix wireless connection abnormality for PS4 controller
Introduction
Yes, of course you love Switch and there are so many great games on it, don't you?
But for those of you who are keen to explore the world of gaming, perhaps you'd prefer to use your usual Xbox or PS controller?
Wingman NS, the answer to your cravings.
Video
Features
Unboxing
.jpg)
Connecting to the Device
Use for the first time, go to System Settings → Controllers and Sensors, and turn ON Pro Controller Wired Communication.
-
Insert Wingman NS into the Switch console USB port. Slow blinking of the Blue LED indicates that the connection to the console is successful.
-
Wired Connection:
Connect the Xbox 360 / Xbox One / Xbox One Elite2 / PS3 / PS4 / Switch Pro wired controller or game pad to Wingman NS through the USB port.
Using a X360 wireless controller:
Simply connect the wireless X360 wireless receiver to the Wingman NS through the USB port.
Using PS3 / PS4 / PS5 / Switch Pro wireless controller:
After completing the connection according to the instructions of the Wired Connection, remove the USB cable, and then wake up the PS3 / PS4 / Switch Pro wireless controller.
-
Check whether the two Blue LEDs at the sides of the Wingman NS are permanently on. This indicates that the connection is completed.
.png)
Connection Pairing Supplementary Instructions
Holding the LED buttons on the two sides of the Wingman XE for 1 second will activate wireless connection pairing mode. The Wingman XE will engage in pairing with surrounding Bluetooth devices. The pairing mode will end if:
- The connection pairing with the wireless controller is successful.
- The connection pairing is unsuccessful after 1 minute.
- The LED buttons are held for 1 second.

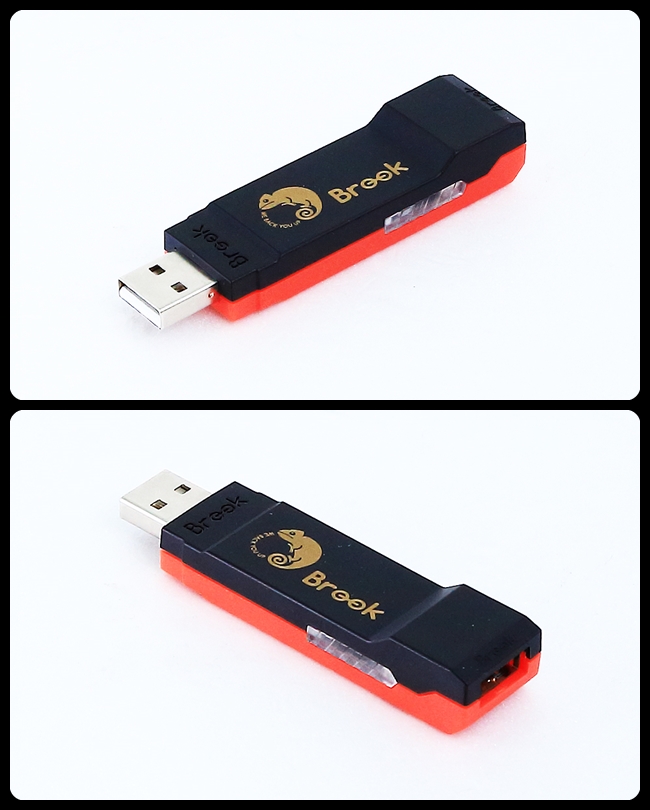

LED
|
Lighting |
Status |
|
Blue LED |
The connector and the device are currently connected. |
|
Blue LED Slow blinking (Once every two seconds) |
Wired device is not connected Wireless device is searching for connection… |
|
Blue LED Fast blinking |
Wireless connection mode is ON Searching for pairing device… |
|
Red LED Blinking |
Turbo-Remap button is being pressed |
|
Red LED Permanently on |
Entering Turbo-Remap Settings |
Turbo Setting
The following instructions are based on the Xbox One controller. For those using other controller, please refer to the Corresponding Buttons List.
Turbo Function Settings
STEP01.
Press Xbox GUIDE button & VIEW button to enter setting mode.
STEP02.
Hold VIEW button & tap the button which you want to set up Turbo function.
STEP03.
Press MENU button to save the setting.
STEP04.
Press Xbox GUIDE button to save the setting.
Cancelling Turbo Function
STEP01
Press Xbox GUIDE button & VIEW button to enter setting mode.
STEP02
Press MENU button & VIEW button to cancel Turbo setting.
STEP03
Press Xbox GUIDE button to exit setting mode.
Turbo Function Settings
Cancelling Turbo Function
Remap Setting
The following instructions are based on the Xbox One controller. For those using other controller, please refer to the Corresponding Buttons List.
Button Remap Settings
STEP01.
Press Xbox GUIDE button & MENU button to enter setting mode.
STEP02.
Press the button which you want to assignment.
STEP03.
Hold VIEW button & press the buttons which you want to Remap.
STEP04.
Press MENU button to save the setting.
STEP05.
Press Xbox GUIDE button to save the setting.
Cancelling Button Remap Settings
STEP01.
Press Xbox GUIDE button & MENU button to enter setting mode.
STEP02.
Press MENU button & VIEW button to cancel Remap setting.
STEP03.
Press Xbox GUIDE button to exit setting mode.
Button Remap Settings
Cancelling Button Remap Settings
Connect to Switch
| Console | Controller | |||||||
|---|---|---|---|---|---|---|---|---|
| Switch | Switch | XB1 | X360 | PS5 | PS4 | PS3 | Mega Drive Mini | SEGA Astro City Mini |
| D-Pad (U/D/L/R) | ||||||||
| Lx / Ly | ||||||||
| Rx / Ry | ||||||||
| B | B | A | A | ╳ | ╳ | ╳ | A | D |
| A | A | B | B | ○ | ○ | ○ | B | E |
| Y | Y | X | X | □ | □ | □ | X | A |
| X | X | Y | Y | △ | △ | △ | Y | B |
| L | L | LB | LB | L1 | L1 | L1 | Z | C |
| R | R | RB | RB | R1 | R1 | R1 | C | F |
| ZL | ZL | LT | LT | L2 | L2 | L2 | Start+Z | Start+C |
| ZR | ZR | RT | RT | R2 | R2 | R2 | Start+C | Start+F |
| L3 | L3 | LSB | LSB | L3 | L3 | L3 | Start+X | Start+A |
| R3 | R3 | RSB | RSB | R3 | R3 | R3 | Start+Y | Start+B |
| + | + | MENU | START | OPTIONS | OPTIONS | Start | Start+A | Start+D |
| - | - | VIEW+LB | BACK+LB | Create | SHARE | Select+L1 | Mode+Z | Credit+C |
| Capture | Capture | VIEW+RB | BACK+RB | Touch Button | Touch Button | Select+R1 | Mode+C | Credit+F |
| Home | Home | Xbox Guide | Xbox Guide | PS | PS | PS | Start+B | Start+E |
Connect to PC
| Console | Controller | |||||||
|---|---|---|---|---|---|---|---|---|
| PC | Switch | XB1 | X360 | PS5 | PS4 | PS3 | Mega Drive Mini | SEGA Astro City Mini |
| D-Pad (U/D/L/R) | ||||||||
| Lx / Ly | ||||||||
| Rx / Ry | ||||||||
| A | B | A | A | ╳ | ╳ | ╳ | A | D |
| B | A | B | B | ○ | ○ | ○ | B | E |
| X | Y | X | X | □ | □ | □ | X | A |
| Y | X | Y | Y | △ | △ | △ | Y | B |
| LB | L | LB | LB | L1 | L1 | L1 | Z | C |
| RB | R | RB | RB | R1 | R1 | R1 | C | F |
| LT | ZL | LT | LT | L2 | L2 | L2 | Start+Z | Start+C |
| RT | ZR | RT | RT | R2 | R2 | R2 | Start+C | Start+F |
| LSB | L3 | LSB | LSB | L3 | L3 | L3 | Start+X | Start+A |
| RSB | R3 | RSB | RSB | R3 | R3 | R3 | Start+Y | Start+B |
| START | + | MENU | START | OPTIONS | OPTIONS | Start | Start+A | Start+D |
| BACK | - | VIEW | BACK | Create | SHARE | Select | Mode | Credit |
| Capture | Touch Button | Touch Button | ||||||
| Xbox Guide | Home | Xbox Guide | Xbox Guide | PS | PS | PS | Start+B | Start+E |
Notice
If Xbox One Elite Series 2 controller is used, please turn off controller profile settings to prevent interference with Wingman NS’s Turbo or Remap settings. As Xbox One Elite Series 1 controller is incapable of turning off profile settings, when using with Wingman NS, please make sure that the controller buttons are configured to the factory default settings to ensure correct operation of the Turbo/Remap settings.
Where to buy
Official
Global
USA
Europe
Australia
Canada
Philippines
Korea
HongKong
Compatibility
| Compatibility | Controller |
|---|---|
| ASTRO | ASTRO Gaming C40 TR |
| BD&A | POWER A FUSION Pro Controller for Xbox One |
| Brook Fighting Board |
UNIVERSAL FIGHTING BOARD |
| CHASDI | CHASDI Xbox One Wireless Controller |
| DOBE | DOBE X ONE |
| Etokki | Omni Arcade Stick -Sanwa Edition |
| Game Stop | PL-6302 / BB-6302 / GX-6302 |
| HIT BOX | XBOX ONE Hit Box Arcade |
| HORI | XBOX 360 Real Arcade Pro.EX SA |
| HORI | XBOX & PC - Tekken 6 Wireless Pro Stick |
| HORI | REAL ARCADE PRO. VX-SA ( Model name : HX3-59 ) |
| HORI | BLAZBLUE STICK ( Model name : HX3-49 ) |
| HORI | REAL ARCADE PRO. V ( Model name : XBO-004(U/E)) |
| HORI | HORIPAD for Xbox One [XBO-001] |
| HORI | REAL ARCADE PRO. V4 ( Model name : PS4-005(U/E)) |
| HORI | HORI Real Arcade Pro (Soul Calibur VI Edition) ( Model name : PS4-126 ) |
| HORI | DEAD OR ALIVE 5 LAST ROUND STICK for PS4 / PS3 ( Mode name : PS4-029(U/E) ) |
| HORI | TEKKEN 6 REAL ARCADE Pro.3 ( Model name : HP3-62 ) |
| HORI | REAL ARCADE Pro.V3 SA ( Model name : HP3-65 ) |
| HORI | WIRELESS FIGHTING STICK 3 ( Model name : HP3-63 ) |
| HORI | WIRELESS REAL ARCADE PRO. V3 ( Model name : HP3-194(U/E)) |
| HORI | Real Arcade Pro. 4 Premium VLX ( Model name : PS4-030(U/E)) |
| HORI | HORI Fighting Stick Mini 4 for PS4 / PS3 ( Model name : PS4-043 Mini ) |
| HORI | PS3 Hori Fighting Min3 |
| HORI | HORI Fighting EDGE (Arcade Stick) |
| HORI | Real Arcade pro V HAYABUSA 2017 version |
| HORI | Hori Real Arcade Pro N Hayabusa for PS4 |
| HORI | Hori Fighting Stick V3 |
| HORI | Hatsune miku Project DIVA X HD |
| HORI | Soul Calibur IV Arcade Fight Stick for PS3 Playstation 3 |
| HORI | HORI Fighting Commander for PlayStation 4&3 ( Model name : PS4-044) |
| HORI | HORI wired controller light |
| HORI | HORIPAD3 TURBO |
| HORI | ファイティングコマンダー4 |
| HORI | HORI Switch Fighting Stick Mini (Model name : NSW-149MINI ) |
| HORI | HORI SWITCH READ ARCADE PRO V |
| Joytron | REVOLUTION |
| KDIT | KingSnake KS ( Model name : KKS-1302289) |
| Mad Catz | Mad Catz Ultra Street Fighter® IV Arcade FightStick™ Tournament Edition 2 for Xbox 360 |
| Mad Catz | Arcade FightStick Tournament Edition 2 |
| Mad Catz | Arcade FightStick PRO for Xbox 360 |
| Mad Catz | Xbox 360 Street Fighter IV FightPad |
| Mad Catz | WWE All STARS BrawlStick |
| Mad Catz | Street Fighter Tournament Edition S ( Model name : 89384) |
| Mad Catz | Street Fighter®V Arcade FightStick™ Tournament Edition 2+ for PS4 & PS3 (Model name : 89481) |
| Mad Catz | Street Fighter®V Arcade FightStick™ Alpha for PS4 & PS3 ( Model name : 89180 ) |
| Mad Catz | Mad Catz Street Fighter IV Tournament Edition |
| Mad Catz | Mad Catz Street Fighter V Arcade FightStick TE2 for PS3 |
| Mad Catz | Mad Catz PS3 Street Fighter IV Arcade Fight Stick for PS4 & PS3 |
| Mad Catz | Mad Catz Street Fighter V FightPad PRO™ for PS4 & PS3 ( Model name : 89250 ) |
| Mad Catz | PS3 Mad Catz Street Fighter X Takken Fight Pad |
| MAKESTICK | MAKESTICK PRO For PS3 ( Model name : IST MAKE PRO 1030 ) |
| MayFlash | Fight Stick - PS3/Xbox 360/PC - Arcade Fighting Stick V2 |
| MayFlash | Mayflash F300 Arcade Fight Stick |
| MayFlash | Arcade Stick F500 Elite |
| Microsoft | Xbox adaptive controller |
| Microsoft | XBOX360 Wireless Controller with Wireless Receiver |
| Microsoft | Xbox 360 Wired Controller |
| Microsoft | Xbox One S Controller (wired use) |
| Microsoft | Xbox One Elite (wired use) |
| Microsoft | Xbox One Elite Series 2 (wired use) |
| Microsoft | Xbox One Controller (wired use) |
| Microsoft | Xbox One Controller with 3.5mm jack |
| Microsoft | Xbox 360 Wireless Receiver |
| Microsoft | Xbox Series X|S controller (wired use, V1.2 update) |
| Microsoft | XBOX360 wireless receiver for windows |
| Nacon | NACON DAIJA ARCADE STICK |
| Nacon | REVOLUTION Pro Controller |
| Nacon | Nacon PS4 Revolution Unlimited Pro Controller |
| Nintendo | Switch Pro controller |
| PDP | Xbox One Mirror's Edge Catalyst Wired Controller |
| PDP | Afterglow Wired Controlle |
| PDP | PDP Wired Controller |
| PDP | Mortal Kombat X Fight Pad for PlayStation 4 and PlayStation 3 |
| POWER A | POWER A FUSION CONTROLLER FOR XBOX ONE |
| POWER A | PowerA Wired Controller for Xbox One ( Model name : 1503455-01 ) |
| POWER A | POWER A Spectra Illuminated Controller |
| PowerA | PowerA Mini Controller for xbox one |
| PowerA | PowerA Enhanced Wired Controller for Xbox One |
| PowerA | PS3 Wired Controller Air Flo |
| PowerA | PowerA Enhanced Wireless Controller for Nintendo Switch |
| PowerA | PowerA Wired Controller Plus for Nintendo Switch |
| QANBA | Q4RAF PS3 & Xbox 360 & PC Joystick |
| QANBA | QANBA Q1-BL Arcade Joystick |
| QANBA | Drone |
| QANBA | Qanba Q2 |
| QANBA | Qanba Q3 |
| RAZER | Razer Atrox |
| RAZER | Razer Wolverine Ultimate ( Model name : RZ06-0225 ) |
| RAZER | Razer Wolverine Tournament Edition |
| RAZER | Razer Panthera Evo Arcade Stick |
| RAZER | Razer Panthera Arcade Stick for PS4 |
| RAZER | Razer Raiju Gaming Controller |
| RAZER | Razer raiju tournament edition |
| RAZER | Razer raiju ultimate (for wireless use, switch to PC BT mode, then hold down PS+OPTIONS to pair) |
| RAZER | Razerraion fightpad |
| SCUF | PROFESSIONAL CONTROLLER FOR XBOX 360 |
| SCUF | PROFESSIONAL GAMING CONTROLLER FOR XBOX ONE |
| SCUF | PROFESSIONAL CONTROLLER FOR PS3 |
| SD | 8BITDO ZERO Z BLUETOOTH GAMEPAD |
| SEGA | ASTRO CITY mini Controller (wired use, V1.2 update) |
| SEGA | ASTRO CITY mini arcade stick (V1.2 update) |
| SEGA | MEGA Drive mini Controller (V1.2 update) |
| SEGA | VIRTUA STICK HIGH GRADE PS3 |
| SONY | PS3 Dualshock 3 controller |
| SONY | PS4 Dualshock 4 controller |
| SONY | PS5 DualSence controller (V1.2 update) |
| SRK TOODLE | Toodles Cthulhu Multi-Console PCB |
| Venom | Venom arcade stick PS4/PS3 |
| X1/X360 | Mortal Kombat X Fight Pad for Xbox One and Xbox 360 |
| 北通 | 阿修羅TE |
| 良值 | 良值二代 PRO |
| 良值 | 良值三代 PRO |
| 景創 | Model name : PL-6460 |
| 景創 | Model name : PL-6302 v.3.3 |
