XB FIGHTING BOARD

Conquer XB Consoles!
with Powerful Software
The first Brook fighting board that supports buttonkey configuration software !
Support XB 360, XB Original and PC

XB console-related product Issue Update

20240207 firmware update (V1.9)

1. Optimizing connectivity

XB Conqueror

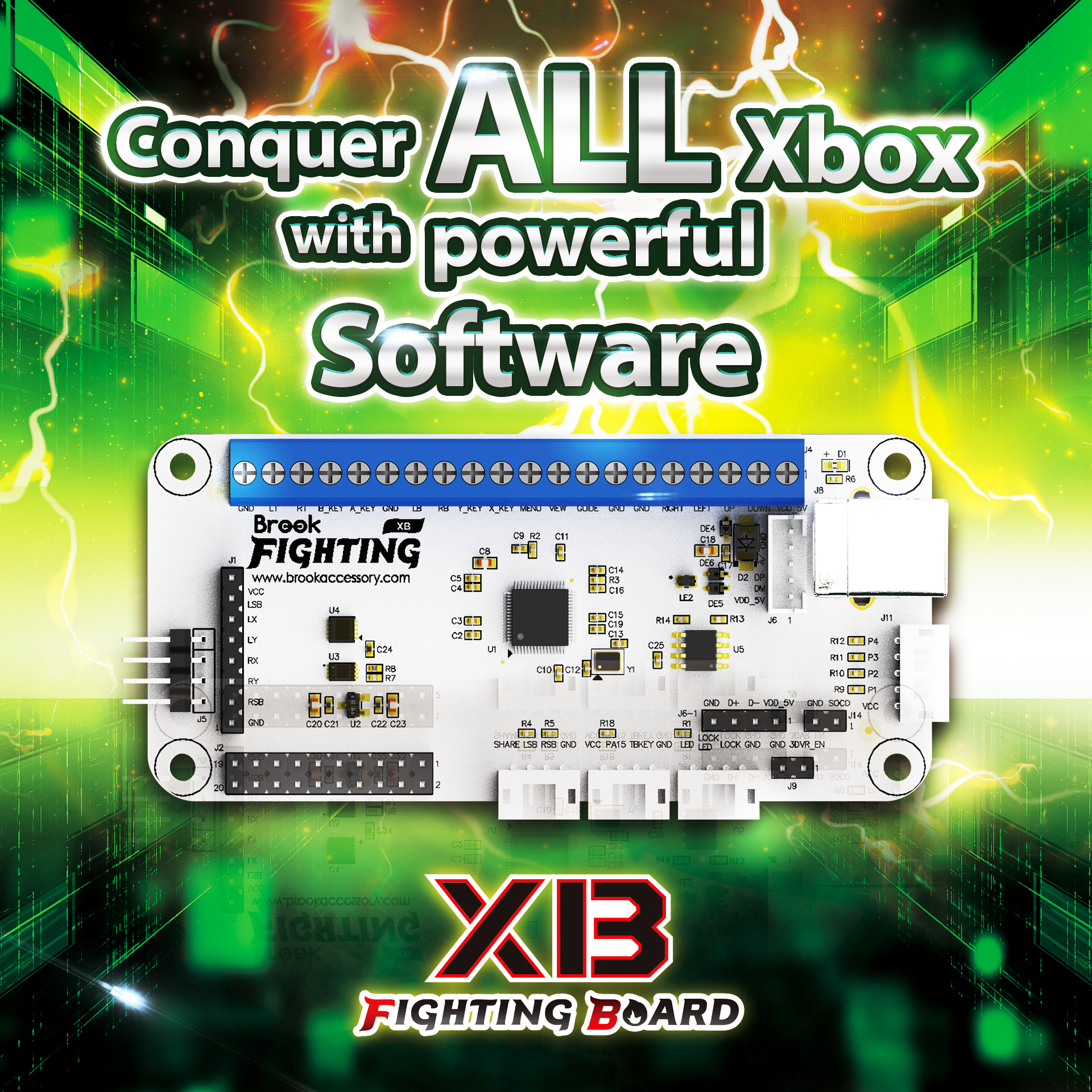

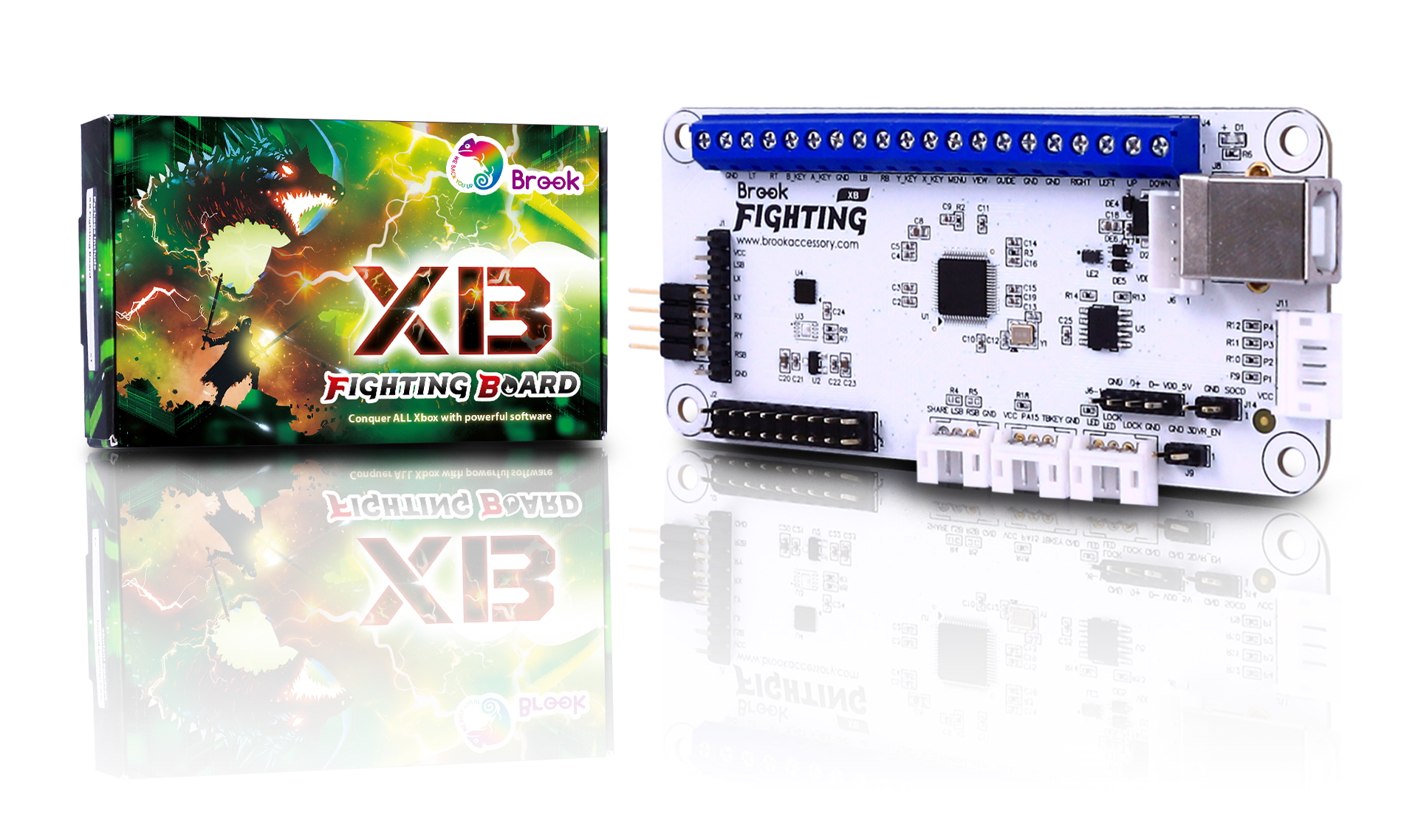

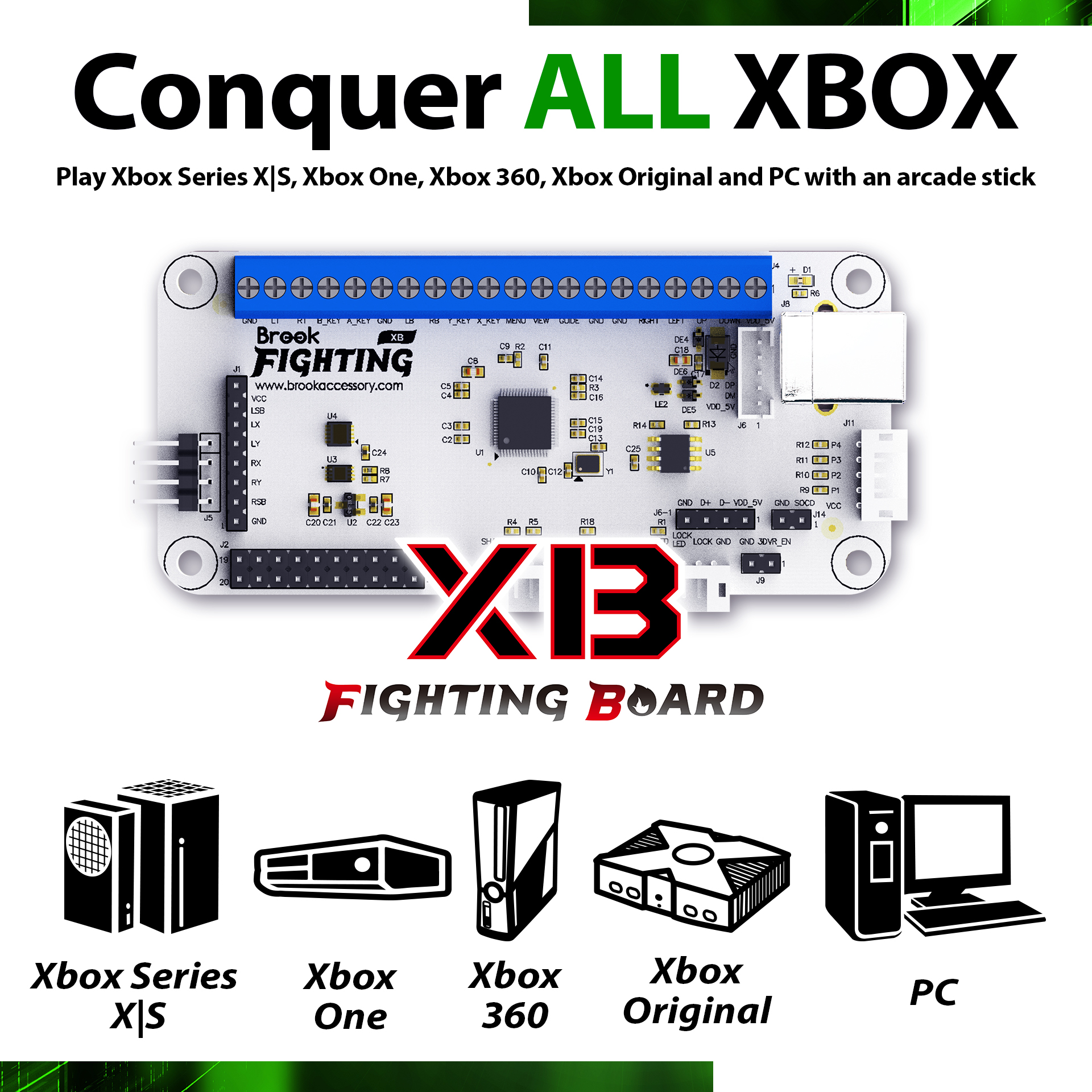

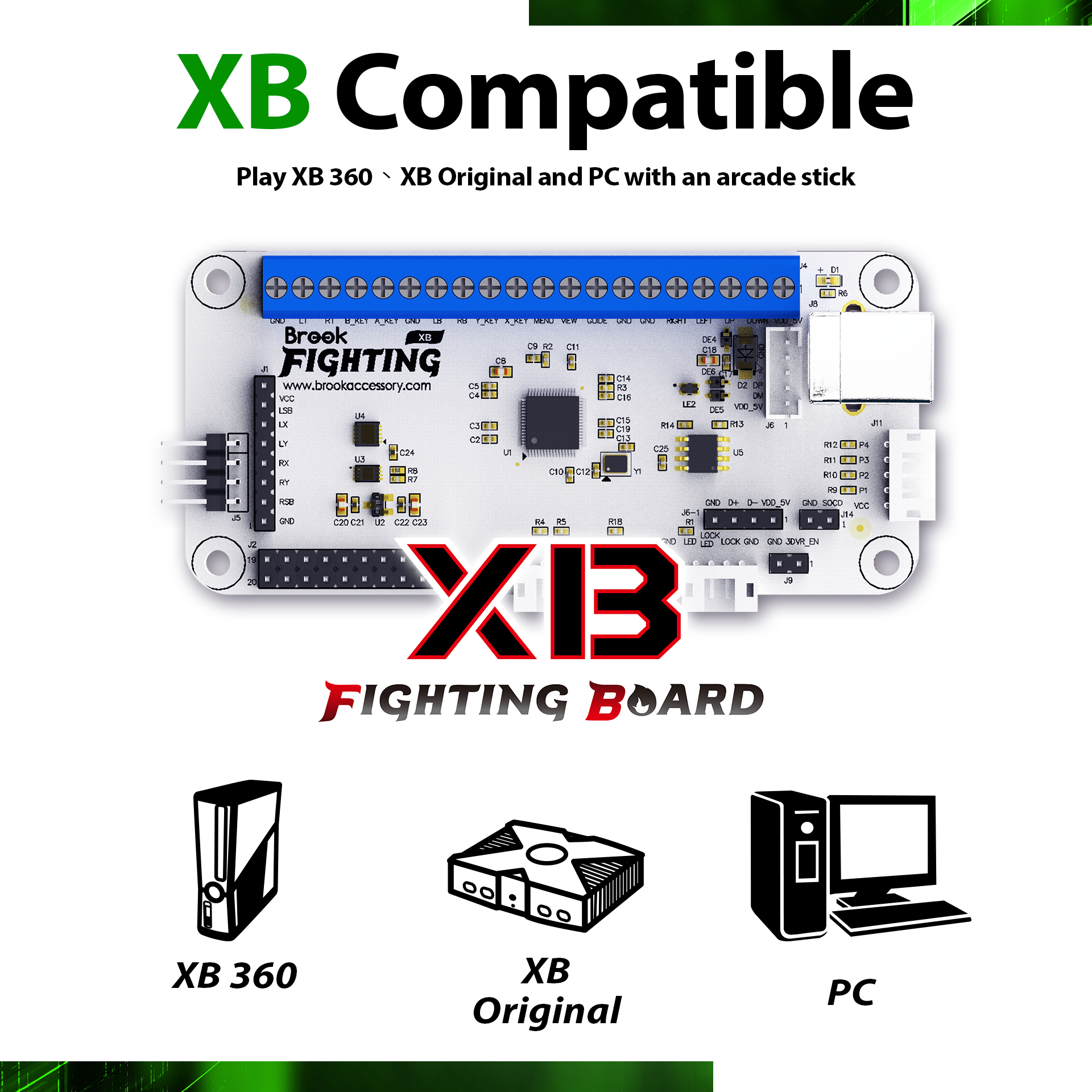

XB FIGHTING BOARD is the first Brook fighting board equipped with Brook ACT button configuration software.
It supports all arcade fighting sticks models and all-button arcade controller on the market. Connect your arcade fighting sticks to the XB , PC console and play.

Support consoles:
XB 360, XB Original ,PC

Powerful Fighting Weapon!

Excellent Support ! Your Commander For Control!

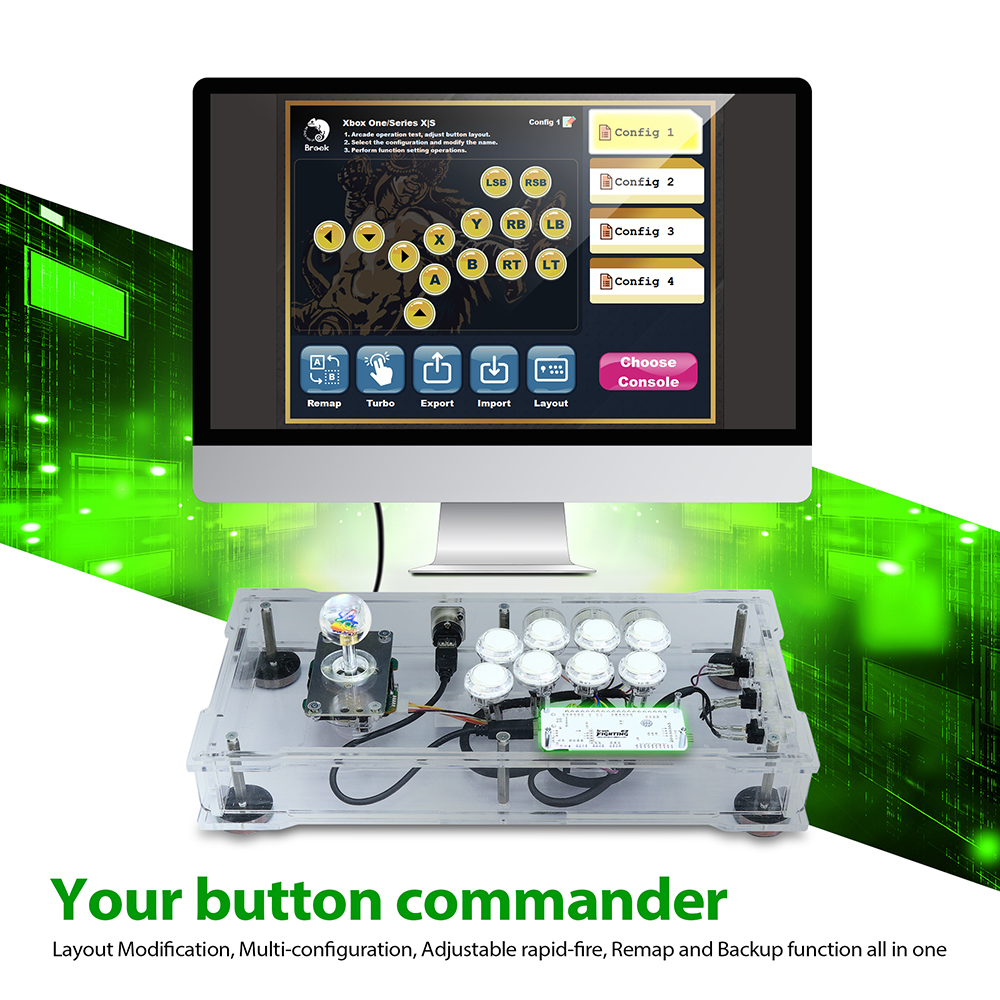

Exclusive Brook ACT (Arcade Configuration Tool) software support, Support button configuration, turbo mode, and button mapping, etc.
Up to 4 configurations for each console. Switch configuration anytime for different consoles, games, and environments. The best weapon for all your fights!

※ Compatible with PC/Mac.

Conquering All XB Consoles

A perfect fighting board that supports XB consoles . Fight everywhere on XB consoles that’s been on the market for the past 20 years!

You can use arcade fighting stick to play the most iconic fighting games such as “Dead or Alive 3” on XB Original.

SOCD Resolution

	Mode 1- UP Priority	Mode 2- CAPCOM / Neutral	Mode 3- Last Priority	Mode 4- BYPASS
Switch method	Hold down the Left button and then insert into the console to initiate switching.	Hold down the Up button and then insert into the console to initiate switching.	Hold down the Down button and then insert into the console to initiate switching.	Hold down the Right button and then insert into the console to initiate switching.
← + →	Neutral	Neutral	→	← + →
→ + ←	Neutral	Neutral	←	→ + ←
↑ + ↓	↑	Neutral	↓	↑ + ↓
↓ + ↑	↑	Neutral	↑	↓ + ↑

1. Default setting is mode 1.
2. SOCD will be automatically saved.
3.The BYPASS function still depends on how each game or console recognizes direction conflict detection. Even if there is a conflict in controller input commands, it may still be recognized by the game as different commands.

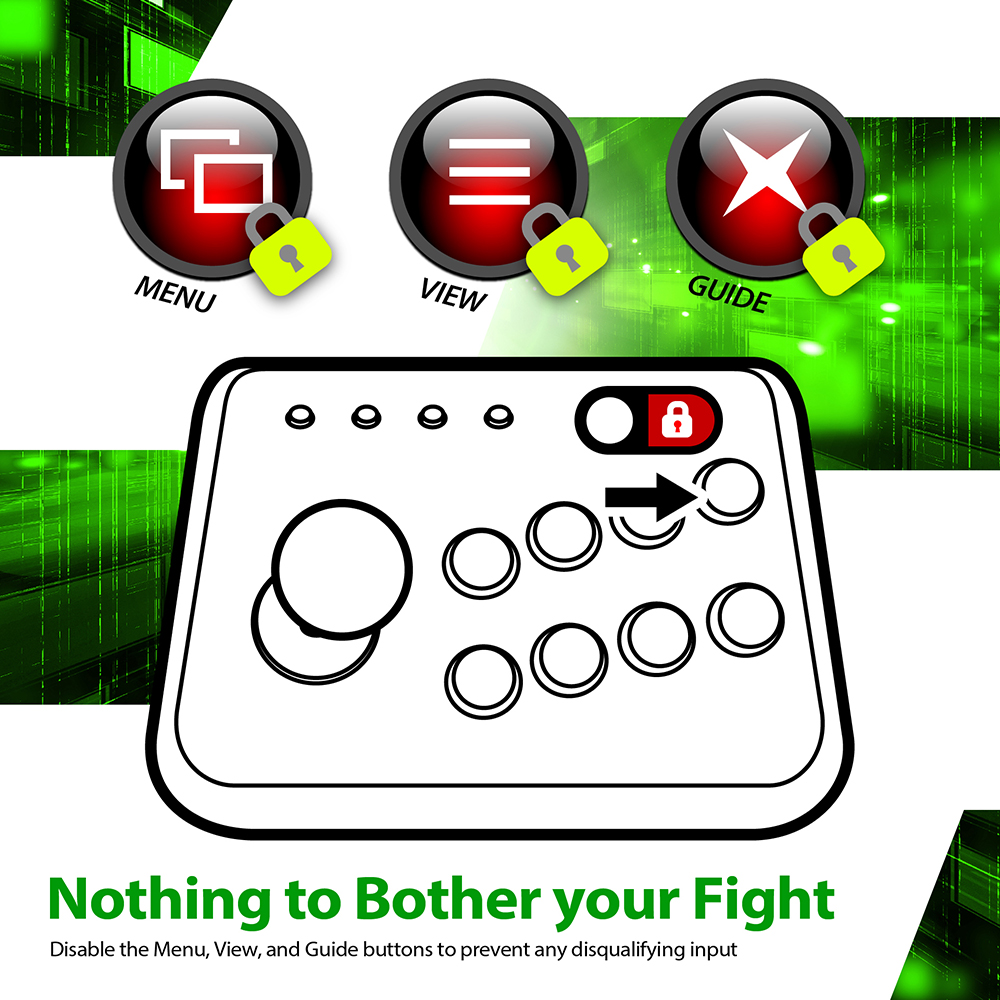

Button Lock

Support Button Lock Feature in Competition Mode
Switch on/off competition mode to avoid false triggers.
1. Turn off Guide, Menu, View buttons.
2. Turn off turbo mode for all buttons.
3. Switch to mode 1 for SOCD resolution mode.

More Features

Turbo 5 Speeds
Support 5, 10, 15, 20, 25 hit/sec. Five different turbo speeds for different situations.
3 Output Options
Support 3 types of USB standard ports to match your USB cable for optimal connection. Perfect embodiment for your ideal arcade fighting stick.
Easy Installation
Equipped with embedded stud type terminal block for easy assemble.
Compatible with the iconic “fighting board cable” or “Hitbox cable” designed by Brook for fighting games. Customizing your dream arcade fighting stick is just a breeze!
Auto-detection of gaming console
Plug and play. Automatically detect console including XB 360.
※ Auto-detection does not support the XB Original, manual switch will be required.
※ If you want to use it on PC, you need to manually switch to XB 360, XB One.
Effortless firmware updates
Update the device firmware via USB. No need to worry about future support or compatibility.

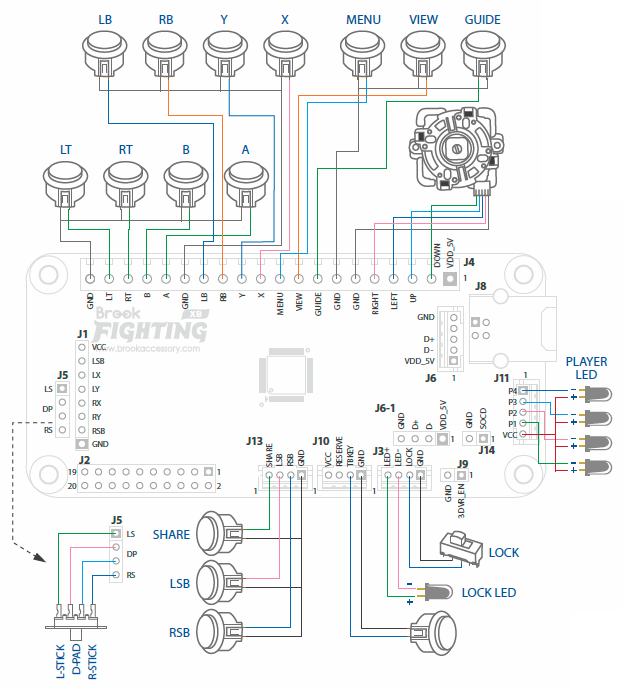

Wire positioning.

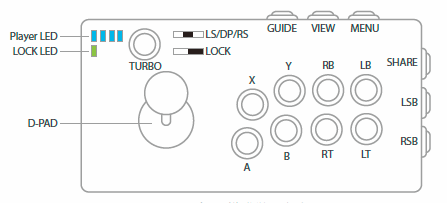

Arcade fighting stick configuration examples:

J1、J9：to analog control.

J2、J4、J13：to analog and digital control.

J5：LS, DP, RS switch.

J6、J6-1、J8：to gaming console.

J10：Turbo setup.

J11：Player LED display.

J14：SOCD resolution mode switch.

J3：buttons lock.

※ See instruction manual for details.

Specifications

Support XB 360、XB Original、PC
Support all full-size arcade fighting sticks and all-button arcade controller upgrades.
The first fighting board that supports Brook ACT (Arcade Configuration Tool) software.
Save up to 12 customized configurations. Customized settings for every gaming console!
Built-in SOCD cleaner specifically designed for all-button arcade fighting sticks which meets the eSport regulations.
Button lock feature to avoid false triggers during the tournament
Updatable firmware via USB.
Support 5 speeds 5, 10, 15, 20, 25 hit/sec in turbo mode.

※ Each console can save up to 4 configurations.
