FIGHTING BOARD PS3/PS4

The BROOK FIGHTING BOARD PCB supports PS3 and PS4 arcade sticks.

Small size - Powerful functions

20191023 firmware update (V2.2)
Functions optimization

Overview

The Brook PS3/PS4 Fighting Board is the PCB which supports PS3, PS4, PC  and play PS4 Game on PS5. Within this fighting Board, you will have the best experiences of playing all kinds of fighting games.

A new PCB has been released. LS/RS/DP switch pin has been added to provided new gaming experience!

Features

Original PCB

  • Plug and play
    The only plug and play solution in the market
  • Multi-console support
    Compatible with PS3/PS4/PC
  • No timeout issue
    No annoying 8-minute timeout issue on PS4
  • Additional Turbo support
    Turbo function support
  • Upgradable
    Upgrade firmware via USB
  • SOCD cleaner support
  • PS4 controller touchpad click emulation
  • XInput support

New PCB features

  • SOCD Mode Select Pin
  • LS/RS/DP Switch

*​New PCB with new layout, please refer to New PCB Features for more information.

Original PCB



New PCB

Emulate function

LS, RS, DP Emulate

For those who don't have LS, RS, DP switch, it's able to press combo keys for 3 seconds to swich between LS, RS, DP modes.





Touchpad Emulate

SOCD Resolution



The product support two SOCD resolution modes.

Mode 1:
When there is a left/right input collision, it becomes neutral.
When there's an up/down input collision, the up is prioritized.

Mode 2:
The second input is prioritized whrn collisions occur.

   Situation  Function
 Mode 1   Left, Right collision:
  Neutral
  Up, Down collision:
  Up priority
 ( ← + → = Noting )
 ( → + ← = Noting )
 ( ↑ + ↓ = ↑ )
 ( ↓ + ↑ = ↑ )
 Mode 2  Second-Input Priority  ( ← + → = → )
 ( → + ← = ← )
 ( ↑ + ↓ = ↓ )
 ( ↓ + ↑ = ↑ )



Open Mode 1
Short Mode 2

* Only Mode 1 meets the requirements for competitions.

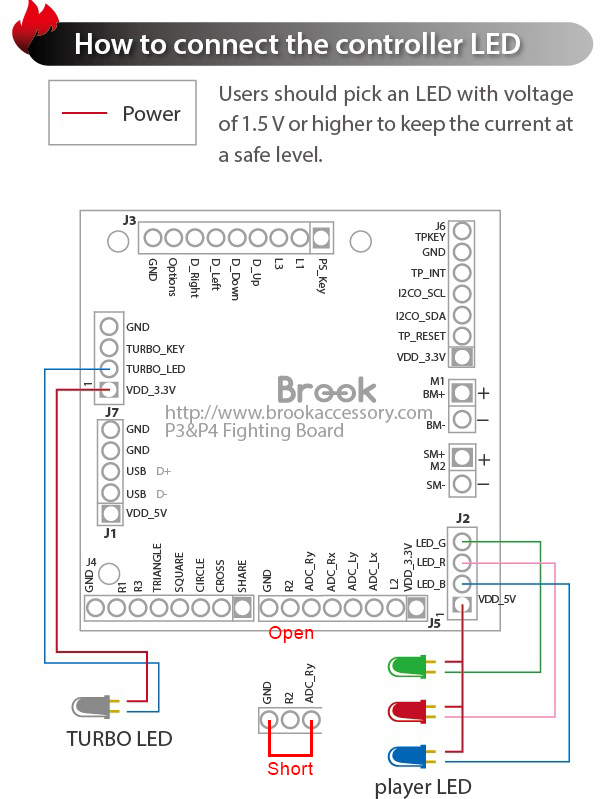

Connecting



New PCB Features

SOCD Mode Select Pin

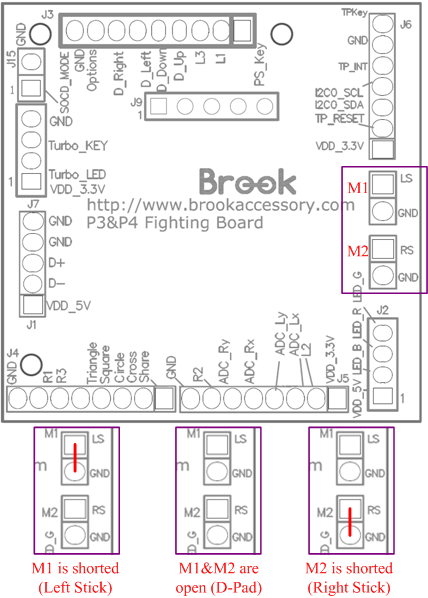

LS/RS/DP Switch
