Q61.Other Technical Questions - Wii WiiU SW PS4 to SW PS4

Q : How do I use my controller wired or wirelessly?

A :  First of all, connect the converter to the console.

  1. Wired : Simply connect the controller to the converter for wired use.

2. Wireless :

2.1 Hold down the Brook Key until the Brook LED fastly flashes red (Pairing Mode)

2.2 Press the SYNC button on the controller for pairing

For PS4 controller, hold down PS+Share until the controller LED flashes for pairing.

Q : Some controllers can only be used wired? Others can only be used wirelessly? And some controllers can be both?

A :

  1. Wired only : None

2. Wireless only : PS4 controller/ Joycon/ Nintendo Switch Pro controller/ Wiimote controller (+ Nunchuck)/ WiiU PRO controller

3. Both wired and wireless : Wii Classic controller/ Wii Taiko/ Wii fight stick

Q : For the controller that can be used both wired and wirelessly, does it have any restriction ?

A :

  1. For wired use, just connect the controller to the converter

2. For wireless use, it has to be used with Wiimote controller. That is, you have to pair the Wiimote controller with the converter first. After that, connect the controller to Wiimote controller to use. You can switch the controllers during use without pairing Wiimote controller with the converter again.

Q : For the controller that can be only used wirelessly, does it have any restriction ?

A :

  1. The Joycon L and R controllers have to be paired one by one.

2. After successfully pairing PS4 controller, hold down the PS key until disconnection so that you don’t need to pair it again for future use. For future use, after plug the converter to console, just press the PS key for reconnection.

Q : How do I cancel all the turbo settings(take joycon as example, refer to button configuration for corresponding controller and button)?

A :

  1. Hold down (Home) + (-)

2. Hold down (+) + (-) to cancel all the turbo settings

3. Press (+) to store the setting.

4. Press (Home) to exit the setting

Q : How do I cancel single turbo setting(take joycon as example, refer to button configuration for corresponding controller and button)?

A : Hold down (Home) + (-) to enter setting mode, then press the button you want to cancel turbo, then press (+) to store the setting; finally press (Home) to exit setting mode.

Q : How do I cancel all remap settings?

A :

  1. Hold down (Home) + (+)

2. Hold down (+) + (-) to cancel all the remap settings

3. Press (+) to store the setting.

4. Press (Home) to exit the setting

Q : How do I cancel single remap setting?

A : Hold down (Home) + (+) to enter setting mode, then press the button you want to cancel remap, then press (+) to store the setting; finally press (Home) to exit setting mode.

Q : Does it support to set turbo or remap to all controllers?

A : Not for the Wiimote controller.

However, if you are using Wii Classic controller or Wii fight stick with Wiimote controller, you can do the turbo or remap setting on the Wii Classic controller or Wii fight stick. You cannot do it with Wii Taiko and Nunchuck, but their setting will be changed accordingly if you do it on Wii Classic controller or Wii fight stick.

Q : What do the 2 converter LEDs indicate? Any different signs?

A :
Q62.Other Technical Questions - PS3PS4 to MDPCE

Q : Does it work with wireless controller?

A : Brook converter is Bluetoorh wireless connection. As long as the controller has built-in Bluetooth, it can be used wirelessly. Note that it needs to be used wired for the first time.

Q : Why doesn’t my controller LED turn on when I want to use it wirelessly?

A :

  If there’s no reaction with the controller, it has not been connected successfully. Please connect your controller to the converter again.

  After making sure it works wired, unplug it, wait for about 10 seconds, and press the PS key to pair the controller with the converter.

The controller LED should turn on.

Q : How do I cancel all the turbo settings?

A :

1. Hold down PS + SHARE/ SELECT.

2. Hold down SHARE + OPTIONS or START + SELECT to cancel all the turbo settings

3. Press PS to exit setting.

Q : How do I cancel single turbo setting?

A : Hold down PS + SHARE/ SELECT to enter setting mode, then don’t press SELECT/SHARE, just press the button you want to cancel turbo, then press START/OPTIONS to store the setting ; finally press PS to exit seting mode.

Q : How do I cancel all the remap settings?

A :

1. Hold down PS + OPTIONS/ START.

2. Hold down SHARE + OPTIONS or START + SELECT to cancel all the turbo settings

3. Press PS to exit setting.

Q : How do I cancel single remap setting?

A : Hold down PS + OPTIONS/ START to enter setting mode, then don’t press SELECT/SHARE, just press the button you want to cancel remap, then press START/OPTIONS to store the setting ; finally press PS to exit seting mode.

Q : What do the 2 converter LEDs indicate ? Any different signs ?

A :



Q : There are 2 types of Mega Drive controllers (3 buttons and 6 buttons), do I need to do any setting to use these 2 different controllers ?

A :

-- Hold down PS+Triangle for 3 seconds to see the green LED flash 3 times = 3 buttons controller(default)

-- Hold down PS+Square for 3 seconds to see the green LED flash 3 times = 6 buttons controller

Q :  I can't use Astro City mini, SEGA Mega Drive Mini, SEGA Genesis Mini , what can i do?

A : Set to MDmini mode to use on the 3 consoles

Mode switching :
-- PCE mini mode : Start + Up
-- XID mode : Start + Down
-- MDmini mode : Start + Right

Q : Can I use Qanba 2009 Arcade on my astro mini console?

A: Yes, you can.

Q : Can I use PS3/PS4 to Mega Drive/PC Engine Super Converter to my SEGA Mega Drive with Qanba 2009 Arcade?

A: Yes, you can. Set 2P (Dinput) on qanba2009
Q63.Other Technical Question - PS3PS4 to Dreamcast

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

Playstation 3 and 4 controllers are Bluetoorh wireless connection; therefore, they can be used wirelessly.

Q : Does it support VMU function?

A : Yes, it supports 40 blocks of VMU.
Q64.Other Technical Questions - PS3PS4 to NEOGEO

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

Playstation 3 and 4 controllers are Bluetoorh wireless connection; therefore, they can be used wirelessly.

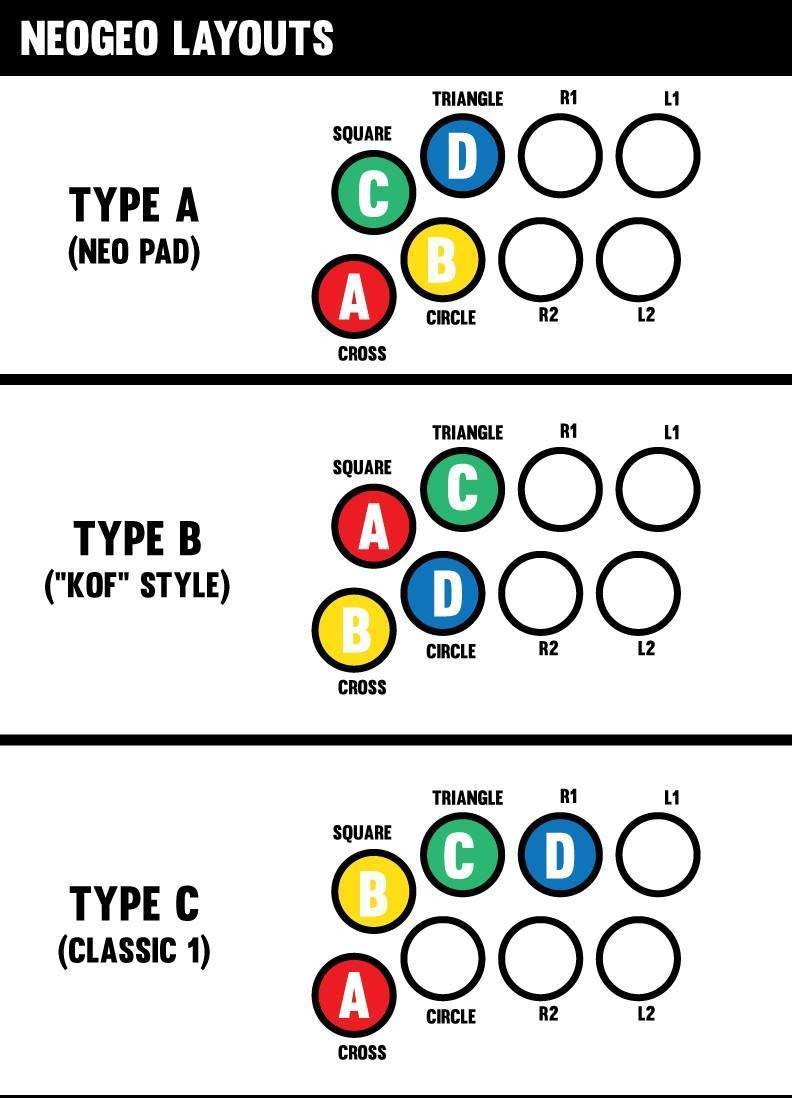

Q : How may layouts does it support? How to switch between them?

A : There are 3 layouts.

By pressing combo keys to switch between Type A, Type B and Type. C

(1) PS + R1( D ) -> Type C

(2) PS + Triangle ( D ) -> Type A

(3) PS + Circle ( D ) -> Type B
Q65.Other Technical Question - Xbox360XboxOne to Switch

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

  Xbox360 and XboxOne controllers are wifi wireless connection; therefore, they cannot be used wirelessly, they needs to used wired.

Q : Can I use this converter on WiiU?

A : By flashing the Xbox360XboxOne to WiiU firmware, you can use this converter on WiiU.

  http://www.brookaccessory.com/download/Wii%20U/

To use back on Switch, flash the PS3PS4 to Switch firmware.

  http://www.brookaccessory.com/download/Switch/

Q : Can I use an OTG connector to connect the converter directly to Switch?

A : Technically speaking, you can do that.

However, it can be unstable, or can disconnect since power is only from Switch.

It is still suggested that the converter be connected to Switch dock to use.

Q : When I connect the converter to the Switch dock, Switch suddenly shuts off with a black error screen

A : Before you connect the converter to the Switch dock, make sure you have turned on "Pro Controller Wired Communication" in System Settings on Switch.
Q66.Other Technical Question - PS3PS4 to Switch

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

  Playstation 3 and 4 controllers are Bluetoorh wireless connection; therefore, they can be used wirelessly.

Q : Can I use this converter on WiiU?

A : By flashing the PS3PS4 to WiiU firmware, you can use this converter on WiiU.

  http://www.brookaccessory.com/download/Wii%20U/

To use back on Switch, flash the PS3PS4 to Switch firmware.

  http://www.brookaccessory.com/download/Switch/

Q : Can I use an OTG connector to connect the converter directly to Switch?

A : Technically speaking, you can do that.

However, it can be unstable, or can disconnect since power is only from Switch.

It is still suggested that the converter be connected to Switch dock to use.

Q : When I connect the converter to the Switch dock, Switch suddenly shuts off with a black error screen

A : Before you connect the converter to the Switch dock, make sure you have turned on "Pro Controller Wired Communication" in System Settings on Switch.
Q67.Other Technical Questions - Xbox360XboxOne to WiiU

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

  Xbox360 and XboxOne controllers are wifi wireless connection; therefore, they cannot be used wirelessly, they needs to used wired.

Q : Can I use this converter on Switch?

A : By flashing the PS3PS4 to Switch firmware, you can use this converter on Switch.

  http://www.brookaccessory.com/download/Switch/

To use back on WiiU, flash the PS3PS4 to WiiU firmware.

  http://www.brookaccessory.com/download/Wii%20U/
Q68.Other Technical Questions - PS3PS4 to WiiU

Q : Does it work with wireless controllers ?

A :

-- Use the controller wirelessly: Standard edition

-- Use the controller wired: Classic edition/ Pro edition

Q : Can I use this converter on Switch?

A : By flashing the PS3PS4 to Switch firmware, you can use this converter on Switch.

http://www.brookaccessory.com/download/Switch/

To use back on WiiU, flash the PS3PS4 to WiiU firmware.

http://www.brookaccessory.com/download/Wii%20U/
Q69.Other Technical Questions -

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

Xbox360 and XboxOne controllers are wifi wireless connection; therefore, they cannot be used wirelessly, they needs to used wired.

Q : What about the Xbox360/ XboxOne Wireless Gaming Receiver? Can I use them with the converter to use my controller wirelessly?

A : The converter and the Xbox360/ XboxOne Wireless Gaming Receiver are not compatible.
Q70.Other Technical Questions - PS3PS4 to XboxOne

Q : Does it work with wireless controllers ?

A : Brook converter is Bluetooth wireless connection.

Playstation 3 and 4 controllers are Bluetoorh wireless connection; therefore, they can be used wirelessly.
